527462033 Easy-On by Molex

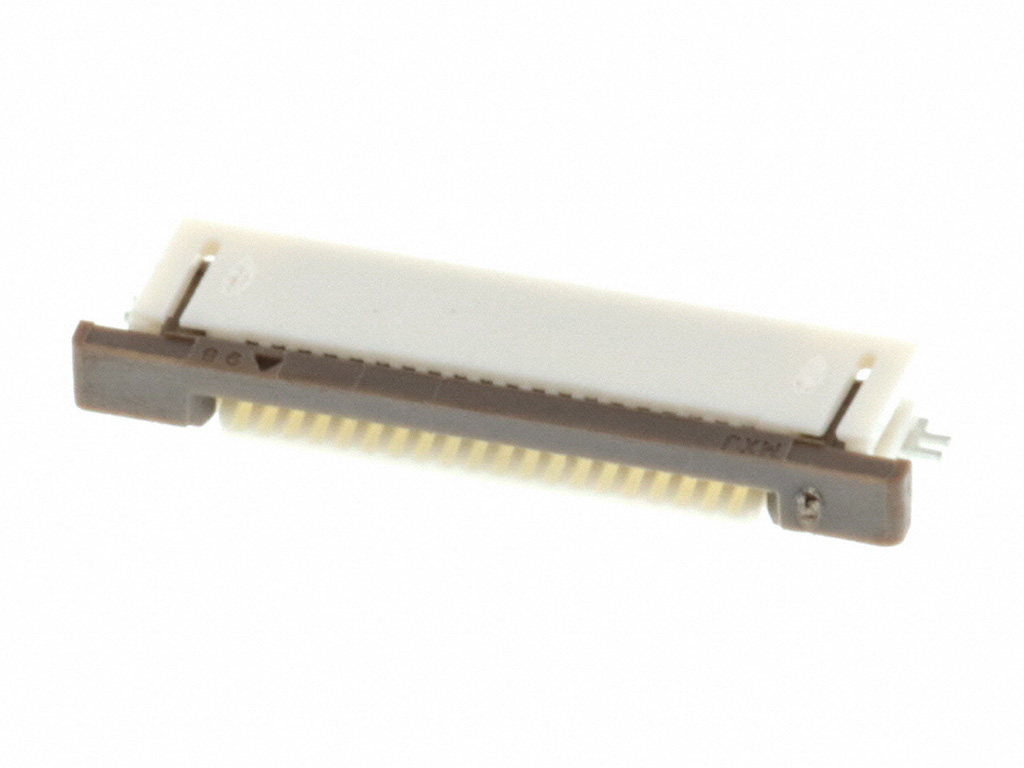

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 20 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52746-2033,
0527462033 |
Where to Buy
Prices starting from US$0.72
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 20 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 229.800/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 20 Rastermaß: 0.5 mm 527462033 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 20POS, 1ROW, 0.5MM | Farnell |
| CONN, FFC/FPC, 20POS, 1ROW, 0.5MM, SMT | element14 |
| Molex 52746-2033 FPC Connector | RS |
| Conn, Ffc/Fpc, 20Pos, 1Row, 0.5Mm, Smt | Newark Electronics |
