527930670 Easy-On by Molex

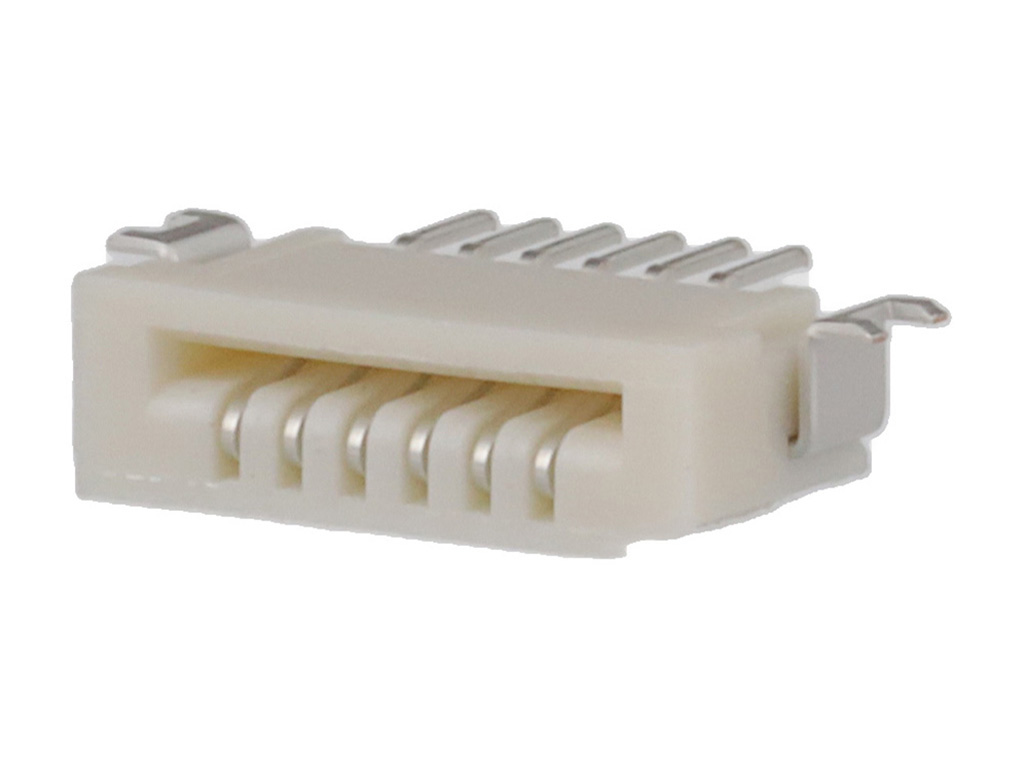

Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Right-Angle, Non-ZIF, Top Contact Style, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52793-0670,
0527930670 |
Where to Buy
Prices starting from US$0.28
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.58
|
56,790
in stock
|
Buy Now |
|
TME
from US$0.34
|
56,000
in stock
|
Buy Now |
|
Farnell
from US$0.45
|
51,111
in stock
|
Buy Now |
|
Newark Electronics
from US$0.48
|
3,597
in stock
|
Buy Now |
|
element14
from US$0.38
|
3,597
in stock
|
Buy Now |
|
RS
from US$0.50
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.28
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 6 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 10 |
| Mated Height | 3.10mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 257.395/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 1 mm 527930670 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 6POS, 1ROW, 1MM | Farnell |
| Connector, Ffc/Fpc, 6Pos, 1Row, 1Mm Rohs Compliant: Yes |Molex 52793-0670 | Newark Electronics |
| CONNECTOR, FFC/FPC, 6POS, 1ROW, 1MM | element14 |
| Molex 52793-0670 FPC Connector | RS |
| 1.00MM EASY-ON 06P RA SMT | TTI Asia |
