528060810 Easy-On by Molex

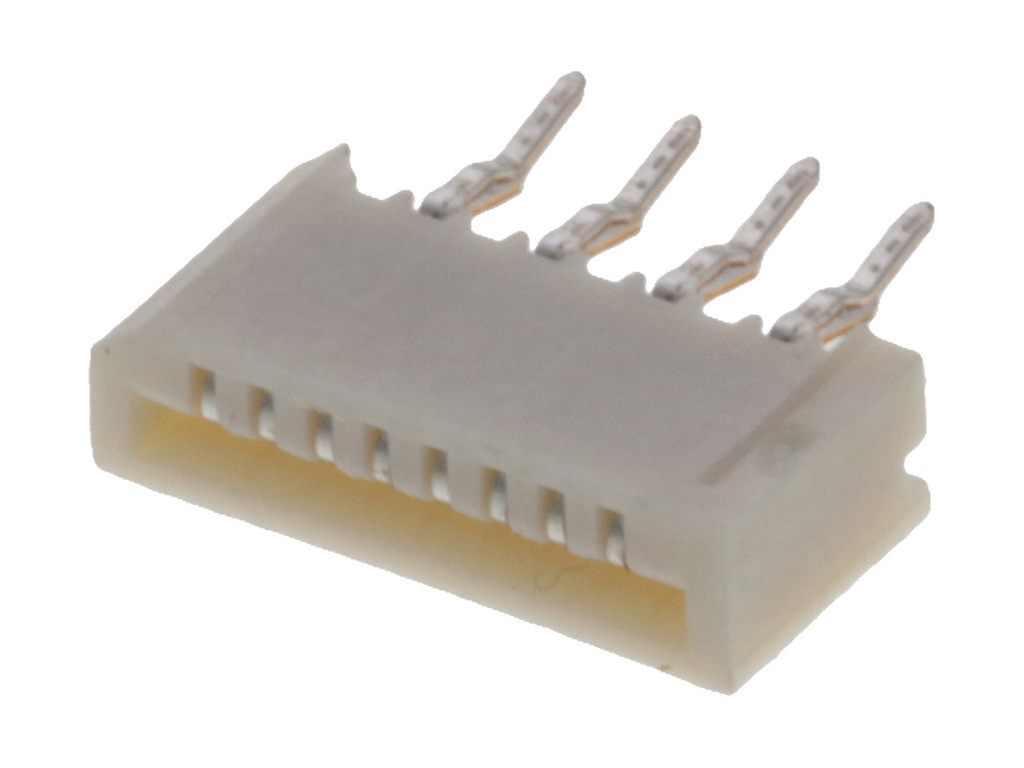

1.00mm Pitch Easy-On FFC/FPC Connector, Vertical, Surface Mount Compatible, Non-ZIF, Kinked PC Tails, 8 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52806-0810,
0528060810 |
Where to Buy
Prices starting from US$0.0480
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.18
|
10,826
in stock
|
Buy Now |
|
Farnell
from US$0.24
|
9,744
in stock
|
Buy Now |
|
Heilind Americas
from US$0.19
|
7,419
in stock
|
Buy Now |
|
element14
from US$0.22
|
254
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0480
|
24
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.31
|
6
in stock
|
Buy Now |
|
Conrad
from US$0.19
|
6
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
523
in stock
|
Buy Now |
|
RS
from US$0.33
|
0
in stock
|
Buy Now |
|
Compona
from US$0.15
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.13
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 8 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 258.101/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole - Kinked Pin |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.914µm |
| Plating Min Termination | 0.914µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 8POS, 1ROW, 1MM | Farnell |
| 1.0 FFC NON ZIF DIP HSG ASSY CKT | Heilind Americas |
| CONNECTOR, FFC/FPC, 8POS, 1ROW, 1MM | element14 |
| Connector, Ffc/Fpc, 8Pos, 1Row, 1Mm | Newark Electronics |
| Molex 528060810 Sil Socket 8-pin 1mm Pitch Vert Smt Non-zif Kinked | Rapid Electronics |
| Molex Buchsenleiste (Standard) Polzahl Gesamt 8 Rastermaß: 1 mm 528060810 1 St. Tray | Conrad |
| Molex 52806-0810 FPC Connector | RS |
| MOLEX 52806-0810 Plug Square FFC 8p SMT | Compona |
