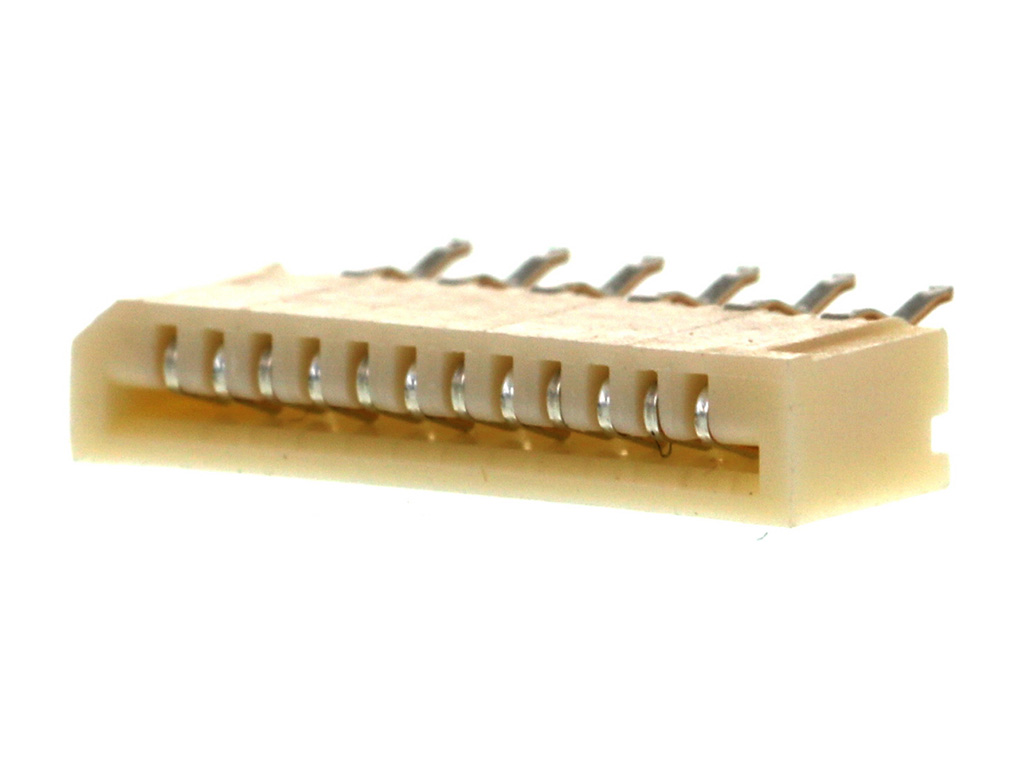

528061210 Easy-On by Molex
1.00mm Pitch Easy-On FFC/FPC Connector, Vertical, Surface Mount Compatible, Non-ZIF, Kinked PC Tails, 12 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52806-1210,
0528061210 |
Where to Buy
Prices starting from US$0.12
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.20
|
56,125
in stock
|
Buy Now |
|
Farnell
from US$0.24
|
50,514
in stock
|
Buy Now |
|
Newark Electronics
from US$0.12
|
12,623
in stock
|
Buy Now |
|
Heilind Americas
from US$0.15
|
1,386
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.42
|
100
in stock
|
Buy Now |
|
Conrad
from US$0.28
|
100
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
125
in stock
|
Buy Now |
|
RS
from US$0.31
|
0
in stock
|
Buy Now |
|
element14
from US$0.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
EME
from US$0.26
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 12 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 353.401/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole - Kinked Pin |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.914µm |
| Plating Min Termination | 0.914µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 12POS, 1ROW, 1MM | Farnell |
| Ffc/Fpc Connector, Receptacle 12Pos 1Row | Newark Electronics |
| 1.0 FFC NON ZIF DIP HSG ASSY 2CKT | Heilind Americas |
| Molex 528061210 Easy-on FFC/FPC Connector 12-pin 1.00mm Pitch Smt | Rapid Electronics |
| Molex Buchsenleiste (Standard) Polzahl Gesamt 12 Rastermaß: 1.00 mm 528061210 1 St. Tray | Conrad |
| Molex 52806-1210 FPC Connector | RS |
| CONNECTOR, FFC/FPC, 12POS, 1 ROW, 1MM | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 528061210?
Additional datasheets, footprints and schematics for 528061210 are listed on our Part Details page. You can also find images and similar parts to 528061210 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 528061210 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 528061210 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 528061210 fall under?
The 528061210 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 528061210 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 528061210 you can contact the distributor directly for product support, shipping queries etc.
Is the 528061210 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 528061210 have stock available?
Authorised distributors including TME, Farnell, Newark Electronics, Heilind Americas and Rapid Electronics have stock available or on a lead time for 528061210.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 528061210 often in real-time on the comparison pages.
What if I can't find stock of 528061210?
You can fill out our help required form which you can use to request a quote for 528061210 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
