528061610 Easy-On by Molex

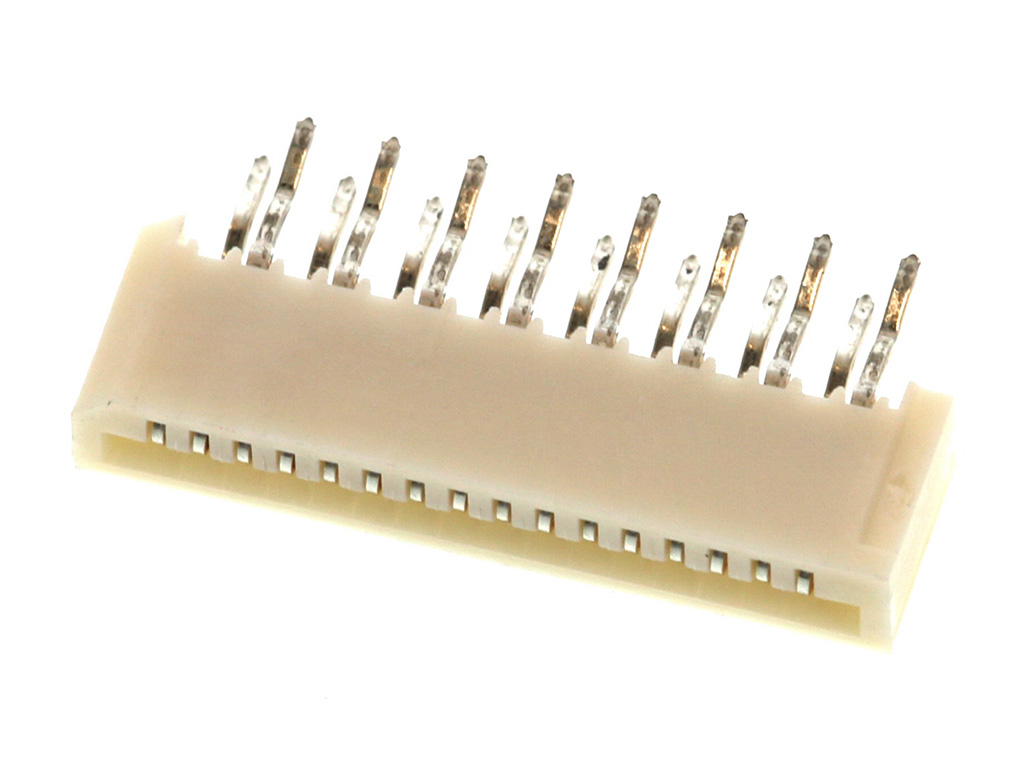

1.00mm Pitch Easy-On FFC/FPC Connector, Vertical, Surface Mount Compatible, Non-ZIF, Kinked PC Tails, 16 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52806-1610,
0528061610 |
Where to Buy
Prices starting from US$0.19
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.29
|
56,320
in stock
|
Buy Now |
|
Farnell
from US$0.32
|
50,688
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.54
|
224
in stock
|
Buy Now |
|
Conrad
from US$0.38
|
224
in stock
|
Buy Now |
|
Newark Electronics
from US$0.40
|
171
in stock
|
Buy Now |
|
element14
from US$0.36
|
171
in stock
|
Buy Now |
|
RS
from US$0.43
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.20
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.22
|
0
in stock
|
Buy Now |
|
Sager
from US$0.20
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.19
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.26
|
0
in stock
|
Buy Now |
|
EME
from US$0.36
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 16 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 448.701/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole - Kinked Pin |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.914µm |
| Plating Min Termination | 0.914µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 16POS, 1ROW, 1MM | Farnell |
| Molex 528061610 Easy-on Sil Socket 16 Pins 1mm Pitch Non-zif Smt | Rapid Electronics |
| Molex Buchsenleiste (Standard) Polzahl Gesamt 16 Rastermaß: 1.00 mm 528061610 1 St. Tray | Conrad |
| Conn, Ffc/Fpc, 16Pos, 1Row, 1Mm Rohs Compliant: Yes |Molex 52806-1610 | Newark Electronics |
| CONN, FFC/FPC, 16POS, 1ROW, 1MM | element14 |
| Molex 52806-1610 FPC Connector | RS |
| 1.0 FFC NON ZIF DIP HSG ASSY 16CKT | RS Americas |
| FFC & FPC Connectors 1.0 FFC Non ZIF DIP Hsg Assy 16Ckt | Sager |
| 1.0 FFC NON ZIF DIP HSG ASSY 6CKT | Heilind Americas |
