528062010 Easy-On by Molex

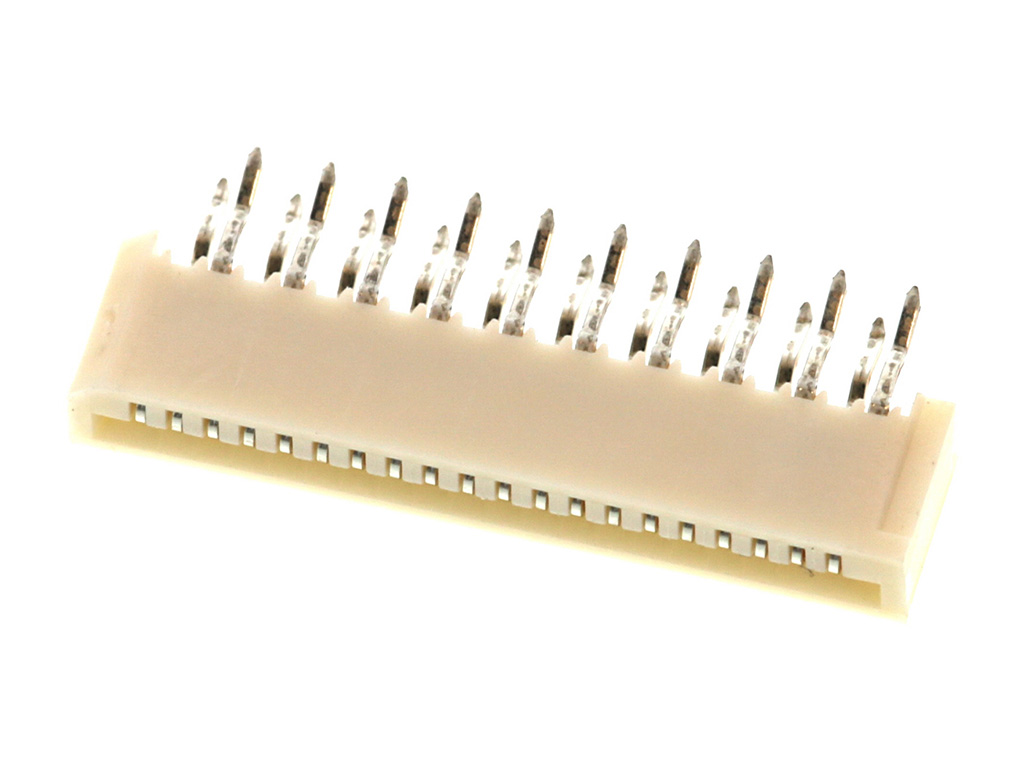

1.00mm Pitch Easy-On FFC/FPC Connector, Vertical, Surface Mount Compatible, Non-ZIF, Kinked PC Tails, 20 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52806-2010,
0528062010 |
Where to Buy
Prices starting from US$0.24
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.45
|
6,257
in stock
|
Buy Now |
|
Conrad
from US$0.60
|
6,257
in stock
|
Buy Now |
|
Farnell
from US$0.42
|
5,632
in stock
|
Buy Now |
|
RS
from US$0.53
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$0.33
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.28
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.31
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.32
|
0
in stock
|
Buy Now |
|
EME
from US$0.46
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 20 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 544.001/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole - Kinked Pin |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.914µm |
| Plating Min Termination | 0.914µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| Molex Buchsenleiste (Standard) Polzahl Gesamt 20 Rastermaß: 1.00 mm 528062010 1 St. Tray | Conrad |
| FPC CONN, RCPT, 20POS, 1ROW, 1MM | Farnell |
| Molex 52806-2010 FPC Connector | RS |
| Flex Cable Connector, pcb Mount,20 Contacts, number Of Contact Rows:1,pc Tail W/Retnn Terminal, locking Rohs Compliant: Yes |Molex 52806-2010 | Newark Electronics |
| Conn FFC Connector SKT 20 POS 2mm Solder ST Thru-Hole Tray | Avnet America |
| 1.0 FFC NON ZIF DIP HSG ASSY 20CKT | RS Americas |
| 1.0 FFC NON ZIF DIP HSG ASSY 0CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 528062010?
Additional datasheets, footprints and schematics for 528062010 are listed on our Part Details page. You can also find images and similar parts to 528062010 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 528062010 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 528062010 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 528062010 fall under?
The 528062010 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 528062010 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 528062010 you can contact the distributor directly for product support, shipping queries etc.
Is the 528062010 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 528062010 have stock available?
Authorised distributors including TME, Conrad, Farnell, RS and Newark Electronics have stock available or on a lead time for 528062010.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 528062010 often in real-time on the comparison pages.
What if I can't find stock of 528062010?
You can fill out our help required form which you can use to request a quote for 528062010 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
