528063010 Easy-On by Molex

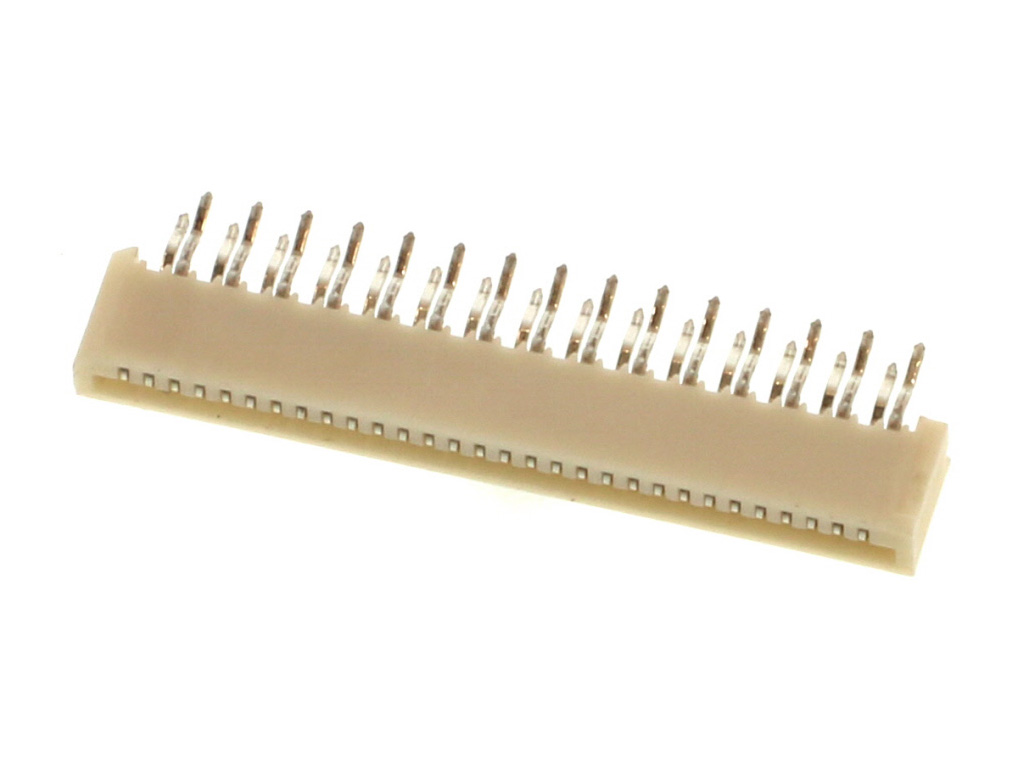

1.00mm Pitch Easy-On FFC/FPC Connector, Vertical, Surface Mount Compatible, Non-ZIF, Kinked PC Tails, 30 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52806-3010,
0528063010 |
Where to Buy
Prices starting from US$0.33
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.72
|
5,300
in stock
|
Buy Now |
|
Farnell
from US$0.57
|
4,820
in stock
|
Buy Now |
|
Newark Electronics
from US$0.91
|
20
in stock
|
Buy Now |
|
element14
from US$0.54
|
20
in stock
|
Buy Now |
|
RS
from US$1.04
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.37
|
0
in stock
|
Buy Now |
|
TME
from US$0.53
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.58
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.33
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.41
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 30 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 782.201/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole - Kinked Pin |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.914µm |
| Plating Min Termination | 0.914µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss 528063010 1 St. | Conrad |
| FPC CONN, RCPT, 30POS, 1ROW, 1MM | Farnell |
| Connector, Ffc/Fpc, 30Pos, 1 Row, 1Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 30POS, 1 ROW, 1MM | element14 |
| Molex 52806-3010 FPC Connector | RS |
| Conn FFC Connector SKT 30 POS 2mm Solder ST Thru-Hole Tray | Avnet America |
| Connector: FFC/FPC | TME |
| 52806 SERIES 1MM PITCH 30 WAY STRAIGHT FPC CONNECTOR, VERTICAL CONTACT | RS Americas |
| 1.0 FFC NON ZIF DIP HSG ASSY 0CKT | Heilind Americas |
