528072210 Easy-On by Molex

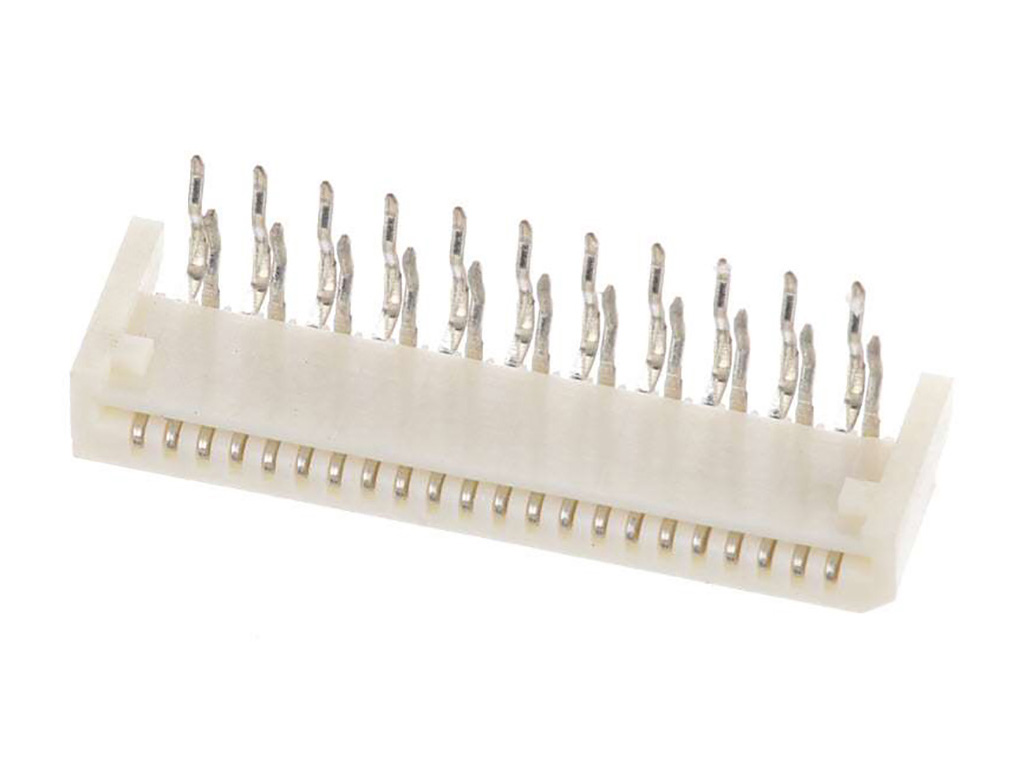

1.00mm Pitch Easy-On FFC/FPC Connector, Right-Angle, Non-ZIF, Top Contact Style Receptacle, 22 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52807-2210,
0528072210 |
Where to Buy
Prices starting from US$0.55
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.65
|
3,427
in stock
|
Buy Now |
|
Conrad
from US$0.71
|
3,427
in stock
|
Buy Now |
|
Farnell
from US$0.74
|
3,100
in stock
|
Buy Now |
|
Avnet America
from US$0.55
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.68
|
0
in stock
|
Buy Now |
|
Sager
from US$0.60
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.56
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.2A, 0.4A, 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 22 |
| Color Resin | Natural |
| Contact Position | Top |
| Mated Height | 3.60mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 674.101/mg |
| Orientation | Right Angle |
| Pcb Mounting | Through Hole - Kinked Pin |
| Pcb Retention | No |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.914µm |
| Plating Min Termination | 0.914µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Ffc/Fpc, 22Pos, 1Row, 1Mm | Newark Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 22 Rastermaß: 1.00 mm 528072210 1 St. Tray | Conrad |
| CONN, FFC/FPC, 22POS, 1ROW, 1MM | Farnell |
| Conn FFC Connector SKT 22 POS 2mm Solder RA Thru-Hole Tray | Avnet America |
| 1.0 FFC NON ZIF DIP HSG ASSY 22CKT | RS Americas |
| FFC & FPC Connectors 1.0 FFC Non ZIF DIP Hsg Assy 22Ckt | Sager |
| 1.0 FFC NON ZIF DIP HSG ASSY 2CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 528072210?
Additional datasheets, footprints and schematics for 528072210 are listed on our Part Details page. You can also find images and similar parts to 528072210 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 528072210 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 528072210 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 528072210 fall under?
The 528072210 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 528072210 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 528072210 you can contact the distributor directly for product support, shipping queries etc.
Is the 528072210 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 528072210 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, Avnet America and RS Americas have stock available or on a lead time for 528072210.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 528072210 often in real-time on the comparison pages.
What if I can't find stock of 528072210?
You can fill out our help required form which you can use to request a quote for 528072210 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
