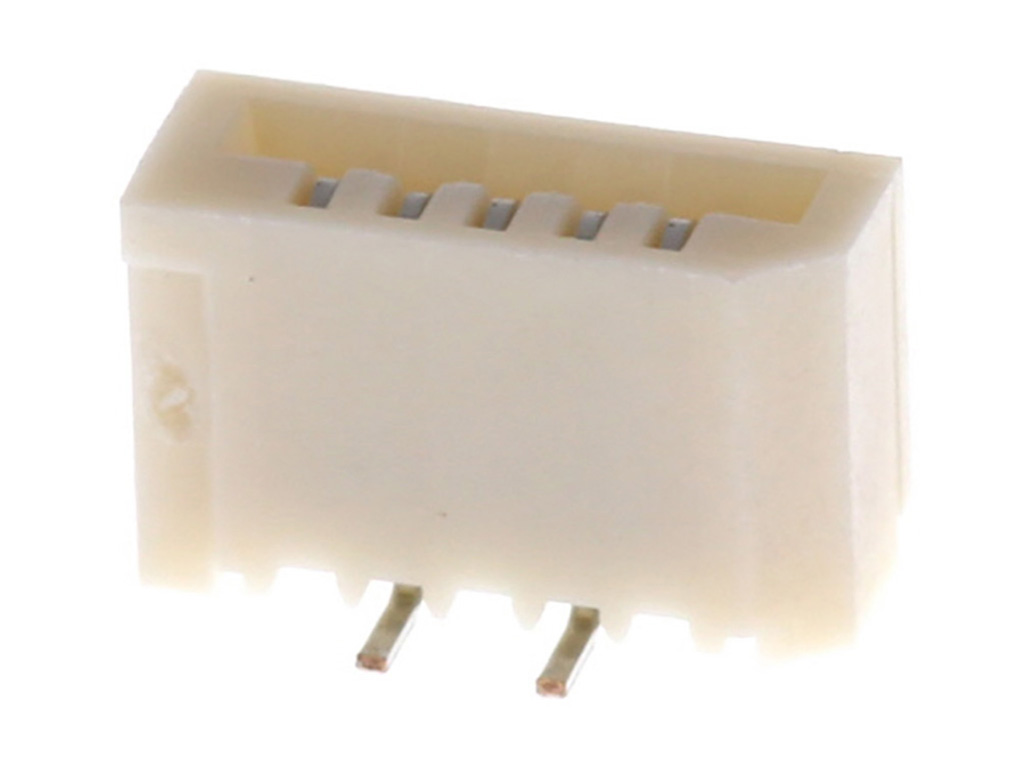

528080570 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Vertical, Non-ZIF, Tin (Sn) Plating, 5 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52808-0570,
0528080570 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.69
|
14,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.31
|
3,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.50
|
488
in stock
|
Buy Now |
|
element14
from US$0.36
|
488
in stock
|
Buy Now |
|
Farnell
from US$0.39
|
488
in stock
|
Buy Now |
|
RS
from US$0.37
|
212
in stock
|
Buy Now |
|
Rutronik
from US$0.17
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.41
|
0
in stock
|
Buy Now |
|
TME
from US$0.17
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.58
|
0
in stock
|
Buy Now |
|
Compona
from US$0.14
|
0
in stock
|
Buy Now |
|
Sager
from US$0.37
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.37
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.13
|
0
in stock
|
Buy Now |
|
EME
from US$0.16
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 5 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.05mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 176.500/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsenleiste (Standard) Polzahl Gesamt 5 Rastermaß: 1 mm 528080570 1 St. Tape on Full reel | Conrad |
| 1.00MM REC 05P VT SMT | TTI Americas |
| Ffc/Fpc Board Connector, Surface Mount, Receptacle, 5, 1 Mm Rohs Compliant: Yes |Molex 52808-0570 | Newark Electronics |
| CONNECTOR, FFC/FPC, 5POS, 1ROW, 1MM | element14 |
| Molex 52808-0570 FPC Connector | RS |
| 05P FFC/FPC Non-ZIF SMT STR 1.00mm | Rutronik |
| Connector: FFC/FPC | TME |
| FFC/FPC SMT SERIES 1MM PITCH 5 WAY STRAIGHT SMT FEMALE FPC CONN, VERTICAL CONTACT | RS Americas |
| MOLEX 52808-0570 Plug FFC 5p SMT | Compona |
| FFC & FPC Connectors 1.00MM REC 05P VT SMT | Sager |
| 1.0 FFC NON ZIFSMTSTHSGASSY5C TEMBSTPPKG | Heilind Americas |
