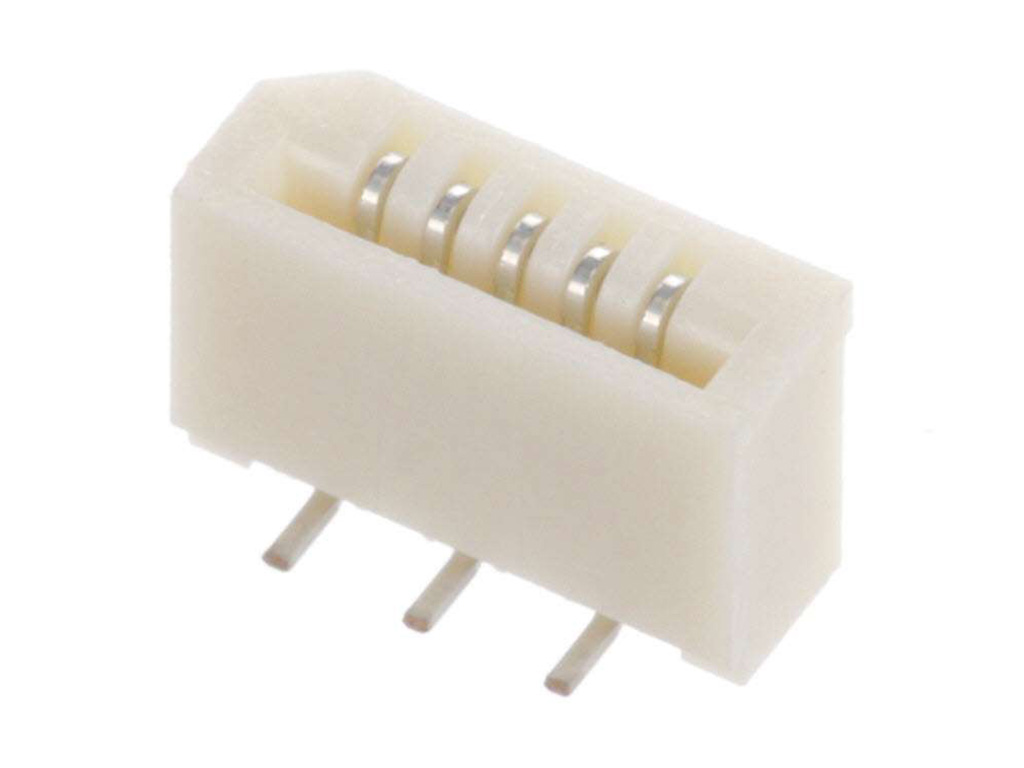

528080571 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Vertical, Non-ZIF, Tin (Sn) Plating, with Pick-and-Place Polyimide Tape, 5 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52808-0571,
0528080571 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.18
|
8,000
in stock
|
Buy Now |
|
Farnell
from US$0.20
|
2,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.25
|
1,680
in stock
|
Buy Now |
|
Conrad
from US$0.36
|
1,680
in stock
|
Buy Now |
|
TME
from US$0.18
|
170
in stock
|
Buy Now |
|
RS
from US$0.26
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.16
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.22
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.13
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 5 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.05mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 176.500/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.00 MM FFC/FPC CONNECTOR 5CK | TTI Europe |
| FPC CONN, RCPT, 5POS, 1ROW, 1MM | Farnell |
| Flex Cable Connector, pcb Mount,5 Contacts, number Of Contact Rows:1,surface Mount Terminal, locking |Molex 52808-0571 | Newark Electronics |
| Molex Buchsenleiste (Standard) Polzahl Gesamt 5 Rastermaß: 1 mm 528080571 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| Molex 52808-0571 FPC Connector | RS |
| Conn FFC Connector SKT 5 POS 2mm Solder ST SMD Embossed T/R | Avnet America |
| FFC/FPC SMT SERIES 1MM PITCH 5 WAY STRAIGHT SMT FEMALE FPC CONN, VERTICAL CONTACT | RS Americas |
| 1.0 FFC NON ZIF HSGASSY5CKTW/ PEMBSTPPKG | Heilind Americas |
