528080770 Easy-On by Molex

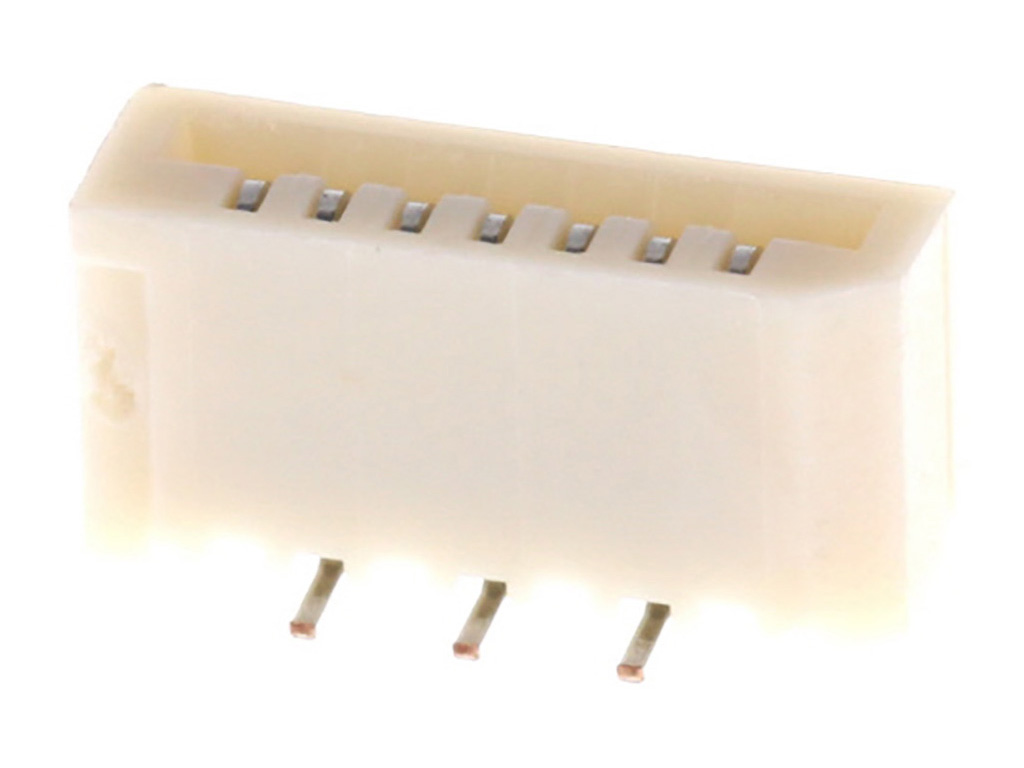

Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Vertical, Non-ZIF, Tin (Sn) Plating, 7 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52808-0770,
0528080770 |
Where to Buy
Prices starting from US$0.18
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.20
|
29,200
in stock
|
Buy Now |
|
Farnell
from US$0.43
|
28,000
in stock
|
Buy Now |
|
TME
from US$0.22
|
23,000
in stock
|
Buy Now |
|
TTI Asia
from US$0.21
|
12,000
in stock
|
Buy Now |
|
RS
from US$0.46
|
1,080
in stock
|
Buy Now |
|
Newark Electronics
from US$0.42
|
59
in stock
|
Buy Now |
|
element14
from US$0.42
|
59
in stock
|
Buy Now |
|
Avnet America
from US$0.21
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.39
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.18
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 7 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.05mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 221.400/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsenleiste (Standard) Polzahl Gesamt 7 Rastermaß: 1.00 mm 528080770 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 7POS, 1ROW, 1MM | Farnell |
| Connector: FFC/FPC | TME |
| 1.0 FFC NON ZIFSMTSTHSGAS | TTI Asia |
| Molex 52808-0770 FPC Connector | RS |
| Connector, Ffc/Fpc, 7Pos, 1Row, 1Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 7POS, 1ROW, 1MM | element14 |
| Conn FFC Connector SKT 7 POS 2mm Solder ST SMD Embossed T/R | Avnet America |
| FFC/FPC SMT SERIES 1MM PITCH 7 WAY STRAIGHT SMT FEMALE FPC CONN, VERTICAL CONTACT | RS Americas |
| 1.0 FFC NON ZIFSMTSTHSGASSY7C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 528080770?
Additional datasheets, footprints and schematics for 528080770 are listed on our Part Details page. You can also find images and similar parts to 528080770 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 528080770 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 528080770 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 528080770 fall under?
The 528080770 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 528080770 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 528080770 you can contact the distributor directly for product support, shipping queries etc.
Is the 528080770 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 528080770 have stock available?
Authorised distributors including Conrad, Farnell, TME, TTI Asia and RS have stock available or on a lead time for 528080770.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 528080770 often in real-time on the comparison pages.
What if I can't find stock of 528080770?
You can fill out our help required form which you can use to request a quote for 528080770 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
