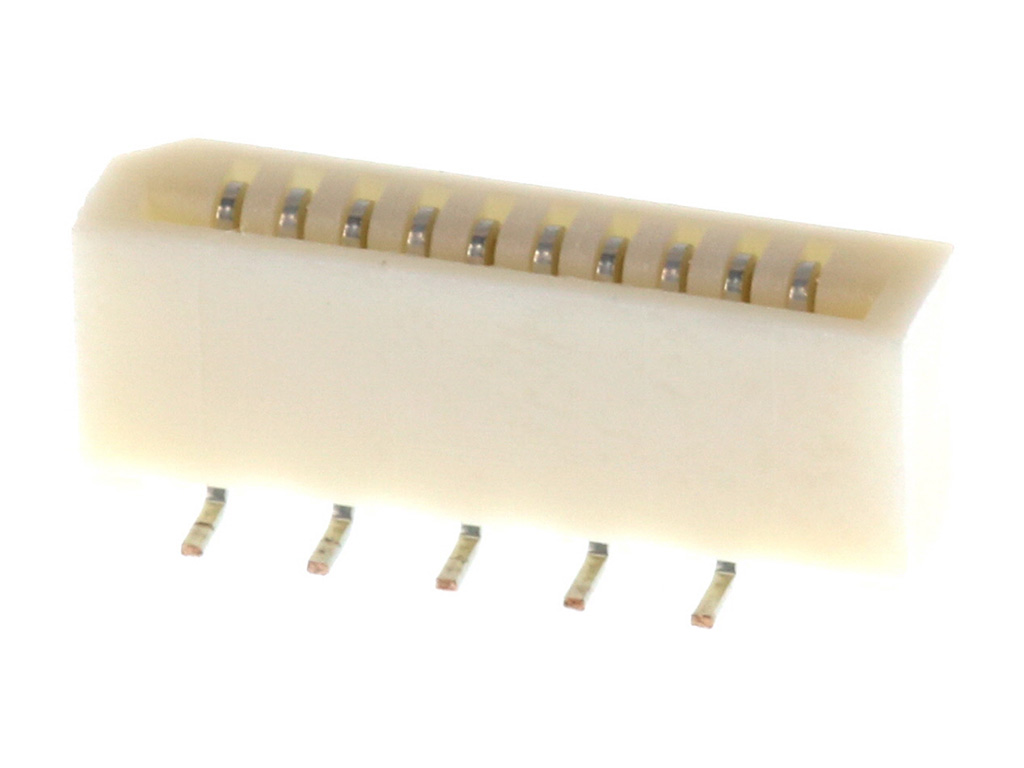

528081070 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Vertical, Non-ZIF, Tin (Sn) Plating, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52808-1070,
0528081070 |
Where to Buy
Prices starting from US$0.10
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.40
|
27,786
in stock
|
Buy Now |
|
Farnell
from US$0.29
|
27,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.22
|
18,000
in stock
|
Buy Now |
|
Rutronik
from US$0.25
|
10,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.10
|
6,113
in stock
|
Buy Now |
|
RS
from US$0.32
|
860
in stock
|
Buy Now |
|
TME
from US$0.29
|
127
in stock
|
Buy Now |
|
Avnet Abacus
-
|
3,000
in stock
|
Buy Now |
|
Avnet America
from US$0.16
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$295.57
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.26
|
0
in stock
|
Buy Now |
|
Sager
from US$0.20
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.23
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.18
|
0
in stock
|
Buy Now |
|
EME
from US$0.27
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 10 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 10 |
| Mated Height | 5.05mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 288.700/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsenleiste (Standard) Polzahl Gesamt 10 Rastermaß: 1 mm 528081070 1 St. Tape on Full reel | Conrad |
| CONN, FFC/FPC, 10POS, 1ROW, 1MM | Farnell |
| 1.00MM REC 10P VT SMT | TTI Americas |
| 10P FFC/FPC ZIF SMT | Rutronik |
| Ffc/Fpc Board Connector. Rcpt, 10Contact | Newark Electronics |
| Molex 52808-1070 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| RECEPTACLE 1MM FFC, SMT, VERT, NON-ZIF,10W | RS Americas |
| 1.00 MM FFC/FPC CONNECTOR 10CK | TTI Europe |
| FFC & FPC Connectors 1.00MM REC 10P VT SMT | Sager |
| 1.0 FFC NONZIFSMTSTHSGASSY10C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 528081070?
Additional datasheets, footprints and schematics for 528081070 are listed on our Part Details page. You can also find images and similar parts to 528081070 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 528081070 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 528081070 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 528081070 fall under?
The 528081070 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 528081070 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 528081070 you can contact the distributor directly for product support, shipping queries etc.
Is the 528081070 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 528081070 have stock available?
Authorised distributors including Conrad, Farnell, TTI Americas, Rutronik and Newark Electronics have stock available or on a lead time for 528081070.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 528081070 often in real-time on the comparison pages.
What if I can't find stock of 528081070?
You can fill out our help required form which you can use to request a quote for 528081070 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
