528520570 Easy-On by Molex

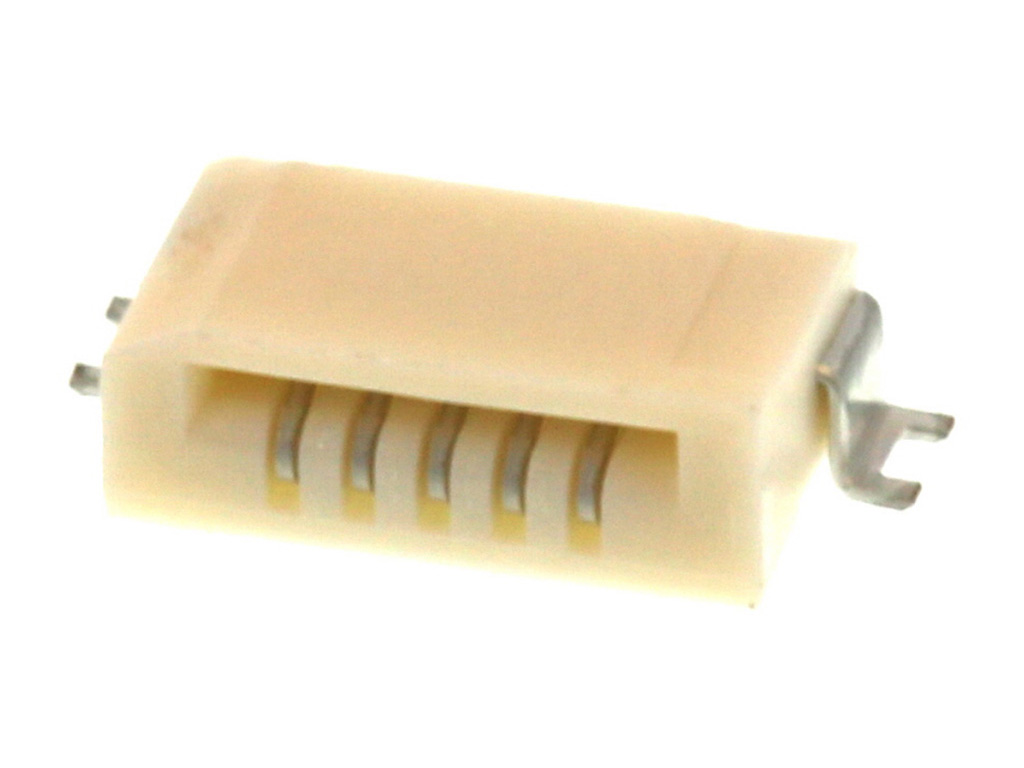

Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Right-Angle, Non-ZIF, Bottom Contact Style, 5 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52852-0570,
0528520570 |
Where to Buy
Prices starting from US$0.32
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.81
|
263,000
in stock
|
Buy Now |
|
TME
from US$0.32
|
240,000
in stock
|
Buy Now |
|
Farnell
from US$0.46
|
238,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.48
|
5,000
in stock
|
Buy Now |
|
element14
from US$0.38
|
5,000
in stock
|
Buy Now |
|
RS
from US$0.44
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.36
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.54
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.43
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.33
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 5 |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 10 |
| Mated Height | 3.10mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Net Weight | 207.900/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsenleiste (Standard) Polzahl Gesamt 5 Rastermaß: 1.00 mm 528520570 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 5POS, 1ROW, 1MM | Farnell |
| Conn, Ffc/Fpc, R/A, 5Pos, 1Row, 1Mm Rohs Compliant: Yes |Molex 52852-0570 | Newark Electronics |
| CONN, FFC/FPC, R/A, 5POS, 1ROW, 1MM | element14 |
| Molex 52852-0570 FPC Connector | RS |
| 1.0 FFC NON ZIF SMT HSGASSY5CKTEMBSTPPKG | RS Americas |
| 1.00 MM FFC/FPC CONNECTOR 5CK | TTI Europe |
| 1.0 FFC NON ZIF SMT HSGASSY5C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 528520570?
Additional datasheets, footprints and schematics for 528520570 are listed on our Part Details page. You can also find images and similar parts to 528520570 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 528520570 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 528520570 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 528520570 fall under?
The 528520570 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 528520570 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 528520570 you can contact the distributor directly for product support, shipping queries etc.
Is the 528520570 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 528520570 have stock available?
Authorised distributors including Conrad, TME, Farnell, Newark Electronics and element14 have stock available or on a lead time for 528520570.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 528520570 often in real-time on the comparison pages.
What if I can't find stock of 528520570?
You can fill out our help required form which you can use to request a quote for 528520570 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
