528520670 Easy-On by Molex

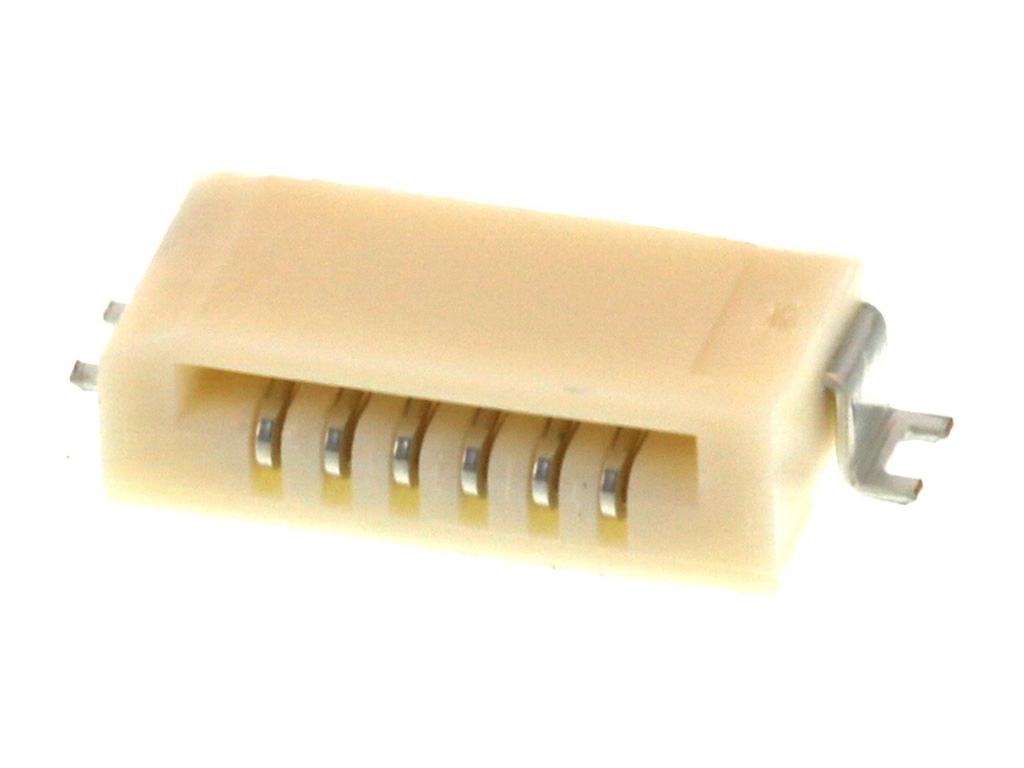

Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Right-Angle, Non-ZIF, Bottom Contact Style, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52852-0670,
0528520670 |
Where to Buy
Prices starting from US$0.32
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.56
|
28,513
in stock
|
Buy Now |
|
Newark Electronics
from US$0.57
|
3,664
in stock
|
Buy Now |
|
element14
from US$0.52
|
3,664
in stock
|
Buy Now |
|
Farnell
from US$0.76
|
3,664
in stock
|
Buy Now |
|
RS
from US$0.48
|
0
in stock
|
Buy Now |
|
TME
from US$0.39
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.40
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.32
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.44
|
0
in stock
|
Buy Now |
|
EME
from US$0.37
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 6 |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 10 |
| Mated Height | 3.10mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Net Weight | 229.600/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 1 mm 528520670 1 St. Tape on Full reel | Conrad |
| Connector, Ffc/Fpc, 6Pos, 1Row, 1Mm, Smt | Newark Electronics |
| CONNECTOR, FFC/FPC, 6POS, 1ROW, 1MM, SMT | element14 |
| Molex 52852-0670 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| 1.0 FFC NON ZIF SMT HSGASSY6C TEMBSTPPKG | Heilind Americas |
| 1.0 FFC NON ZIF SMT HSGAS | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 528520670?
Additional datasheets, footprints and schematics for 528520670 are listed on our Part Details page. You can also find images and similar parts to 528520670 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 528520670 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 528520670 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 528520670 fall under?
The 528520670 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 528520670 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 528520670 you can contact the distributor directly for product support, shipping queries etc.
Is the 528520670 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 528520670 have stock available?
Authorised distributors including Conrad, Newark Electronics, element14, Farnell and RS have stock available or on a lead time for 528520670.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 528520670 often in real-time on the comparison pages.
What if I can't find stock of 528520670?
You can fill out our help required form which you can use to request a quote for 528520670 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
