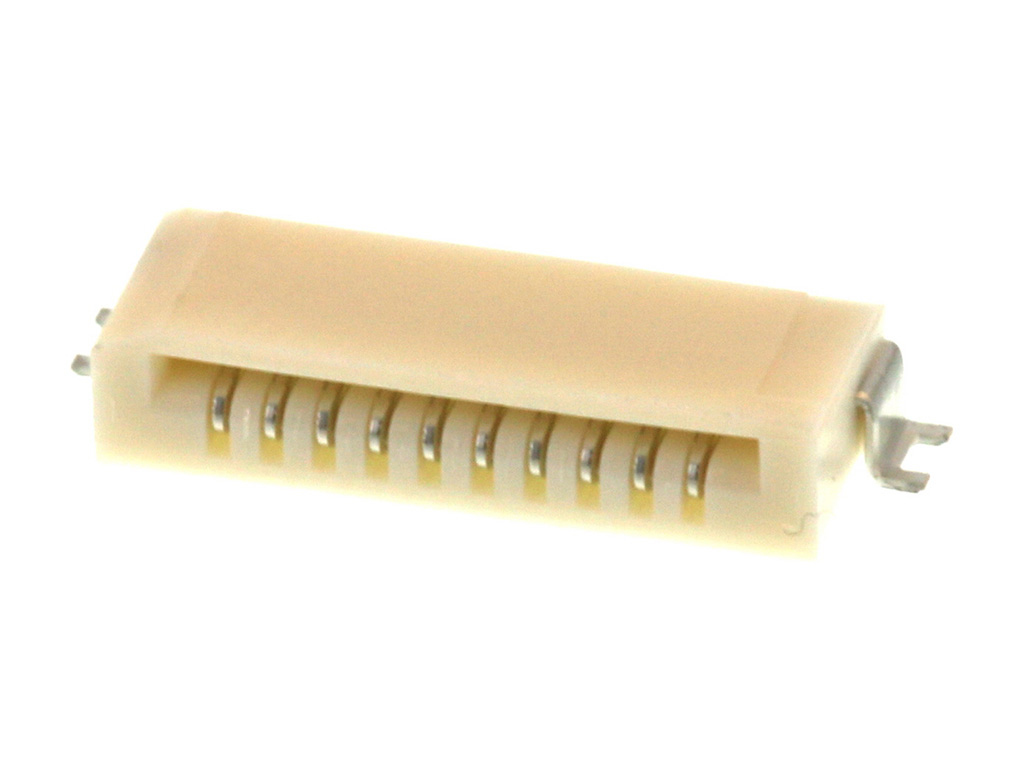

528521070 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Right-Angle, Non-ZIF, Bottom Contact Style, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52852-1070,
0528521070 |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.48
|
51,750
in stock
|
Buy Now |
|
Conrad
from US$1.02
|
25,565
in stock
|
Buy Now |
|
Farnell
from US$0.63
|
24,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.88
|
10,000
in stock
|
Buy Now |
|
element14
from US$0.96
|
940
in stock
|
Buy Now |
|
RS
from US$0.66
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.61
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.77
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.54
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.42
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.56
|
0
in stock
|
Buy Now |
|
EME
from US$0.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 10 |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 10 |
| Mated Height | 3.10mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Net Weight | 316.400/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.0 FFC NON ZIF SMTHSGASSY10C TEMBSTPPKG | Heilind Americas |
| Molex Buchsenleiste (Standard) Polzahl Gesamt 10 Rastermaß: 1 mm 528521070 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 10POS, 1ROW, 1MM | Farnell |
| Flex Cable Connector, pcb Mount,10 Contacts, number Of Contact Rows:1,surface Mount Terminal, locking |Molex 52852-1070 | Newark Electronics |
| CONNECTOR, FFC/FPC, 10POS, 1ROW, 1MM | element14 |
| Molex 52852-1070 FPC Connector | RS |
| 1.0 FFC NON ZIF SMTHSGASSY10CKTEMBSTPPKG | RS Americas |
| 1.00 MM FFC/FPC CONNECTOR 14CT | TTI Europe |
| 1.00MM FFC 10P RA SMT BOT | TTI Asia |
