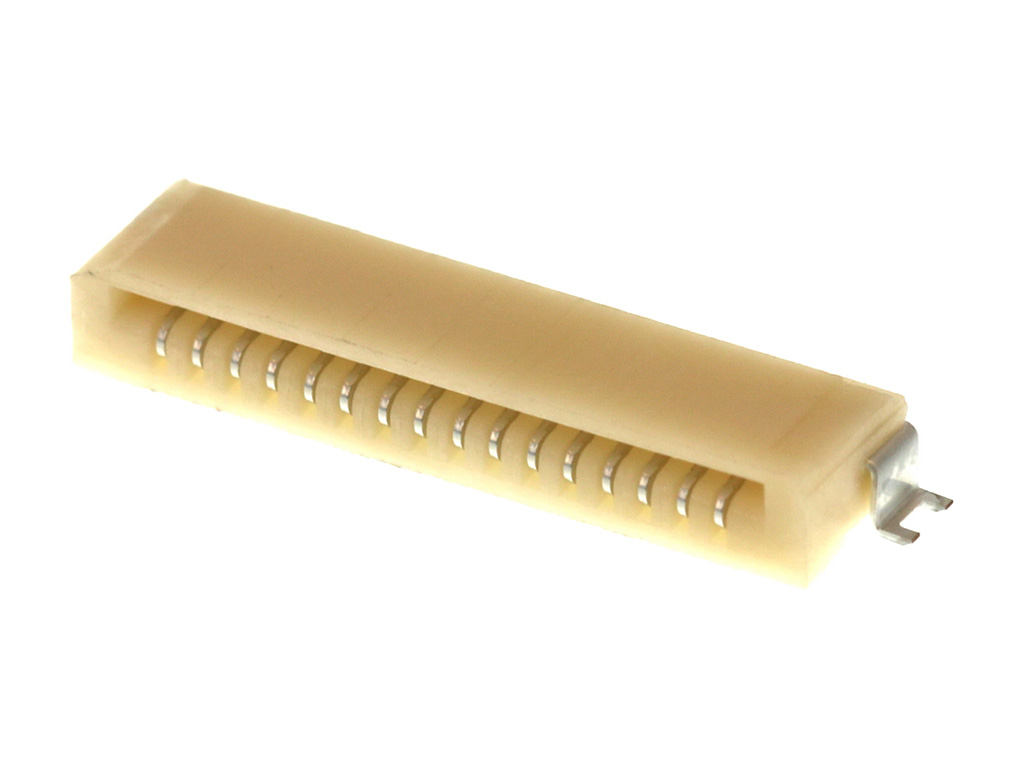

528521670 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Surface Mount, Right-Angle, Non-ZIF, Bottom Contact Style, 16 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52852-1670,
0528521670 |
Where to Buy
Prices starting from US$0.64
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.09
|
31,811
in stock
|
Buy Now |
|
Farnell
from US$0.88
|
29,000
in stock
|
Buy Now |
|
TTI Asia
from US$0.76
|
4,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.97
|
333
in stock
|
Buy Now |
|
element14
from US$0.94
|
333
in stock
|
Buy Now |
|
Rutronik
from US$0.68
|
0
in stock
|
Buy Now |
|
RS
from US$0.81
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.64
|
0
in stock
|
Buy Now |
|
TME
from US$0.68
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1,043.10
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.74
|
0
in stock
|
Buy Now |
|
EME
from US$0.71
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 16 |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 10 |
| Mated Height | 3.10mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Net Weight | 446.600/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsenleiste (Standard) Polzahl Gesamt 16 Rastermaß: 1.00 mm 528521670 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 16POS, 1ROW, 1MM | Farnell |
| 1.00 MM FFC/FPC CONNECTOR 16CI | TTI Asia |
| Connector, Ffc/Fpc, 16Pos, 1Row, 1Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 16POS, 1ROW, 1MM | element14 |
| 16P FFC/FPC Non-ZIF SMT 90° Bott-Con | Rutronik |
| Molex 52852-1670 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| 52852 SERIES 1MM PITCH 16 WAY RIGHT ANGLE FPC CONNECTOR, BOTTOM CONTACT | RS Americas |
