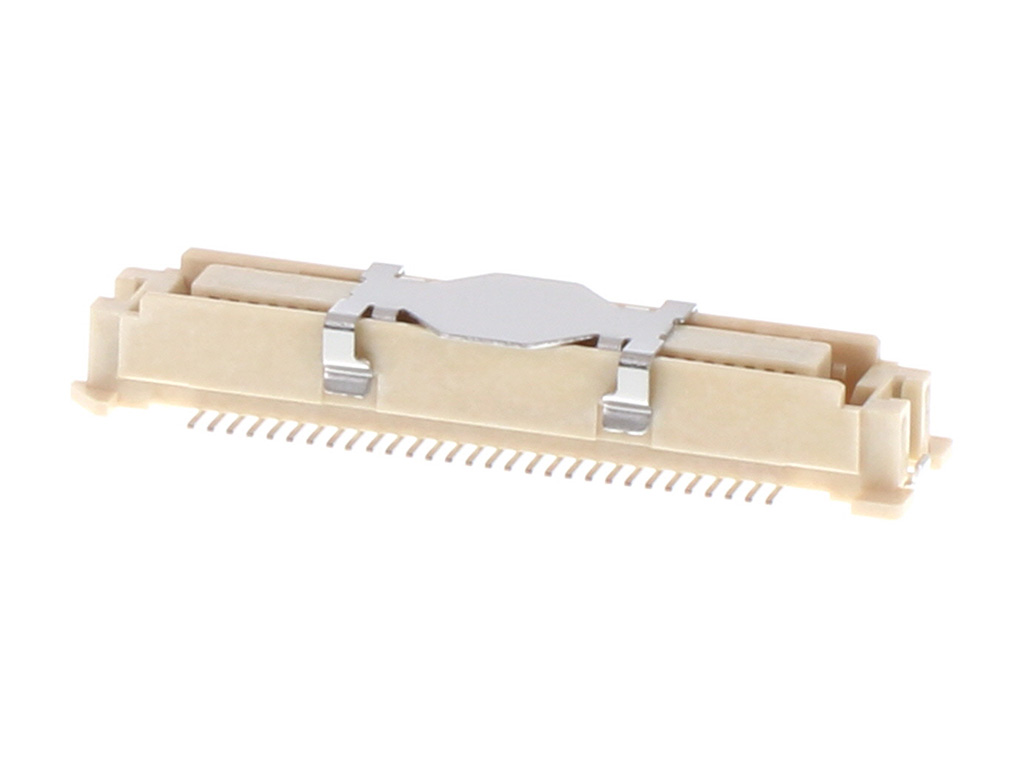

528850674 SlimStack by Molex
SlimStack Board-to-Board Connector, 0.635mm Pitch, 0.635 Series, Receptacle, 6.00 to 10.00mm Mated Height, 6.40mm Mated Width, with Vacuum Pick-Up Area, 60 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52885-0674,
0528850674 |
Where to Buy
Prices starting from US$1.03
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.71
|
3,988
in stock
|
Buy Now |
|
Farnell
from US$6.46
|
3,000
in stock
|
Buy Now |
|
Conrad
from US$7.90
|
2,988
in stock
|
Buy Now |
|
TTI Americas
from US$11.84
|
734
in stock
|
Buy Now |
|
element14
from US$4.72
|
541
in stock
|
Buy Now |
|
TME
from US$2.36
|
437
in stock
|
Buy Now |
|
Rutronik
from US$1.13
|
0
in stock
|
Buy Now |
|
RS
from US$4.18
|
0
in stock
|
Buy Now |
|
Avnet America
from US$4.08
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$8.02
|
0
in stock
|
Buy Now |
|
Sager
from US$8.10
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$5.65
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.03
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.80
|
0
in stock
|
Buy Now |
|
EME
from US$1.31
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 60 |
| Circuits Maximum | 60 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 50 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 10.00mm, 6.00mm, 7.00mm, 8.00mm, 9.00mm |
| Mated Width | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 761.393/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.00mm min |
| Pitch Mating Interface | 0.635mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 2.032µm |
| Polarized To Pcb | No |
| Robotic Placement | Pick and Place Cap |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Slimstack Board-To-Board Connector 0.635Mm Pitch |Molex 52885-0674 | Newark Electronics |
| MEZZANINE CONN, RCPT, 60POS, 2ROW/0.63MM | Farnell |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 60 Rastermaß: 0.635 mm 528850674 1 St. Tape on Full reel | Conrad |
| .635MM REC 02X30P VT | TTI Americas |
| CONNECTOR, STACKING, RCPT, 60POS, 2ROW | element14 |
| Contact | TME |
| 60P SLIMSTACK RECEPTACLE SMT AU | Rutronik |
| Molex 52885-0674 PCB Socket | RS |
| Conn Stacking Receptacle 60 POS 6mm to 10mm Stack Height 0.635mm Solder ST Surface Mount | Avnet America |
| BTB REC HSG ASSY 60CKT EMBSTP PKG 0.635 | RS Americas |
| Board to Board & Mezzanine Connectors .635MM REC 02X30P VT | Sager |
| 0.635 BTB REC HSG ASSY 60CKT MBSTP PKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 528850674?
Additional datasheets, footprints and schematics for 528850674 are listed on our Part Details page. You can also find images and similar parts to 528850674 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 528850674 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 528850674 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 528850674 fall under?
The 528850674 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 528850674 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 528850674 you can contact the distributor directly for product support, shipping queries etc.
Is the 528850674 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 528850674 have stock available?
Authorised distributors including Newark Electronics, Farnell, Conrad, TTI Americas and element14 have stock available or on a lead time for 528850674.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 528850674 often in real-time on the comparison pages.
What if I can't find stock of 528850674?
You can fill out our help required form which you can use to request a quote for 528850674 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
