528921233 Easy-On by Molex

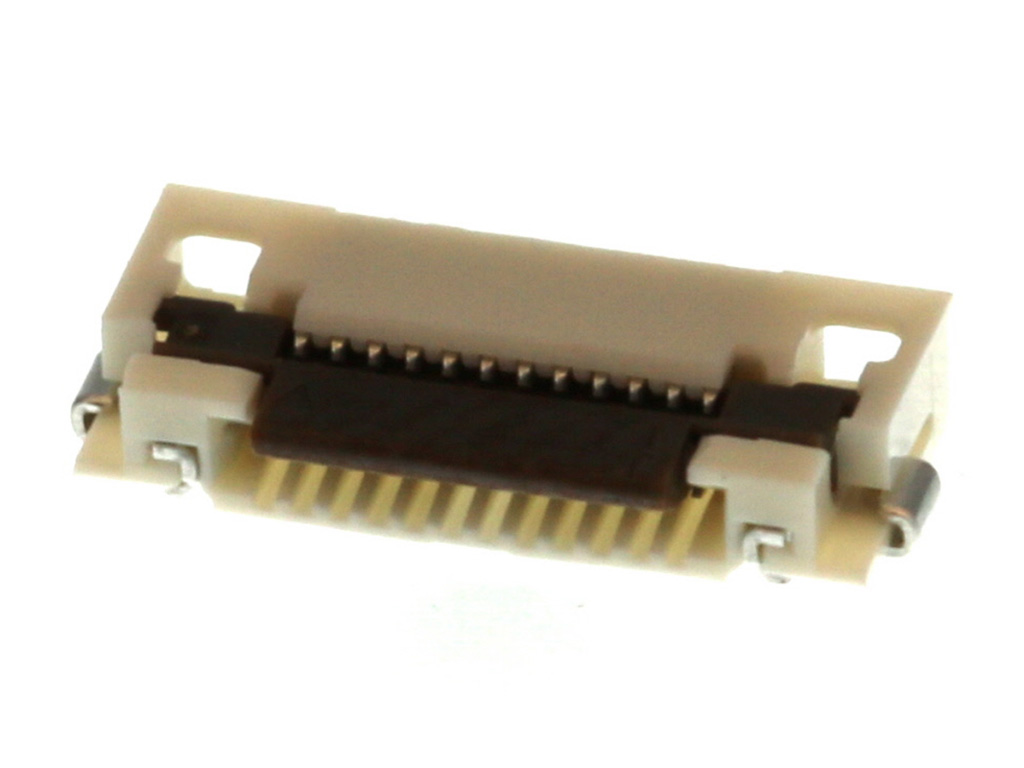

0.50mm Pitch Easy-On FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Bottom Contact Style, Cable Retention Guide, 12 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52892-1233,
0528921233 |
Where to Buy
Prices starting from US$0.49
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.61
|
13,000
in stock
|
Buy Now |
|
Conrad
from US$0.59
|
13,000
in stock
|
Buy Now |
|
Farnell
from US$0.68
|
12,000
in stock
|
Buy Now |
|
RS
from US$0.72
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.49
|
0
in stock
|
Buy Now |
|
TTI Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 12 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 154.908/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.5 Ffc/Fpc Zif Hsg Assy 12Ckt Embstppkg/Molex |Molex 52892-1233 | Newark Electronics |
| Molex FFC/FPC-Anschluss 52892-1233 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 12POS, 1ROW, 0.5MM | Farnell |
| Molex 52892-1233 FPC Connector | RS |
| Conn FFC/FPC Connector SKT 12 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
| .5MM EASY-ON REC 20P BOT RA AU | TTI Asia |
