529010274 SlimStack by Molex

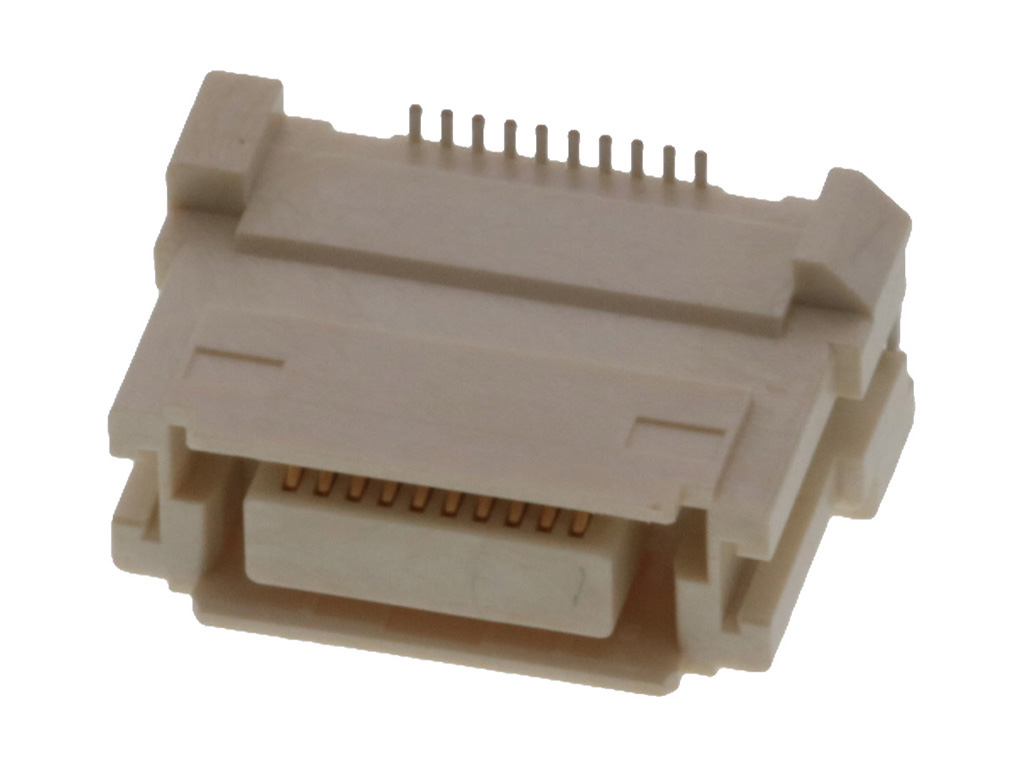

SlimStack Board-to-Board Connector, 0.635mm Pitch, 0.635 Series, Receptacle, 12.00 to 16.00mm Mated Height, 6.40mm Mated Width, with Vacuum Pick-Up Area, 20 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52901-0274,
0529010274 |
Where to Buy
Prices starting from US$1.16
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.15
|
17,160
in stock
|
Buy Now |
|
Farnell
from US$2.37
|
15,510
in stock
|
Buy Now |
|
Newark Electronics
from US$2.06
|
2,042
in stock
|
Buy Now |
|
Heilind Americas
from US$1.86
|
1,320
in stock
|
Buy Now |
|
element14
from US$2.22
|
880
in stock
|
Buy Now |
|
RS
from US$2.54
|
0
in stock
|
Buy Now |
|
TME
from US$2.07
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.57
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | White |
| Durability Mating Cycles Max | 50 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 12.00mm, 13.00mm, 14.00mm, 15.00mm, 16.00mm |
| Mated Width | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 761.730/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.00mm min |
| Pitch Mating Interface | 0.635mm |
| Polarized To Pcb | Yes |
| Robotic Placement | Vacuum Pick-Up Area |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 20 Rastermaß: 0.635 mm 529010274 1 St. Tape on Full reel | Conrad |
| MEZZANINE - ARRAYS | Farnell |
| Mezzanine Conn, Rcpt, 20Pos, 0.635Mm | Newark Electronics |
| 0.635 BTB ST REC HSG ASSY 20C TEMBSTPPKG | Heilind Americas |
| MEZZANINE CONN, RCPT, 20POS, 2ROW | element14 |
| Molex 52901-0274 PCB Header | RS |
| Contact | TME |
| .635MM REC 02X20P VT SMT | TTI Asia |
