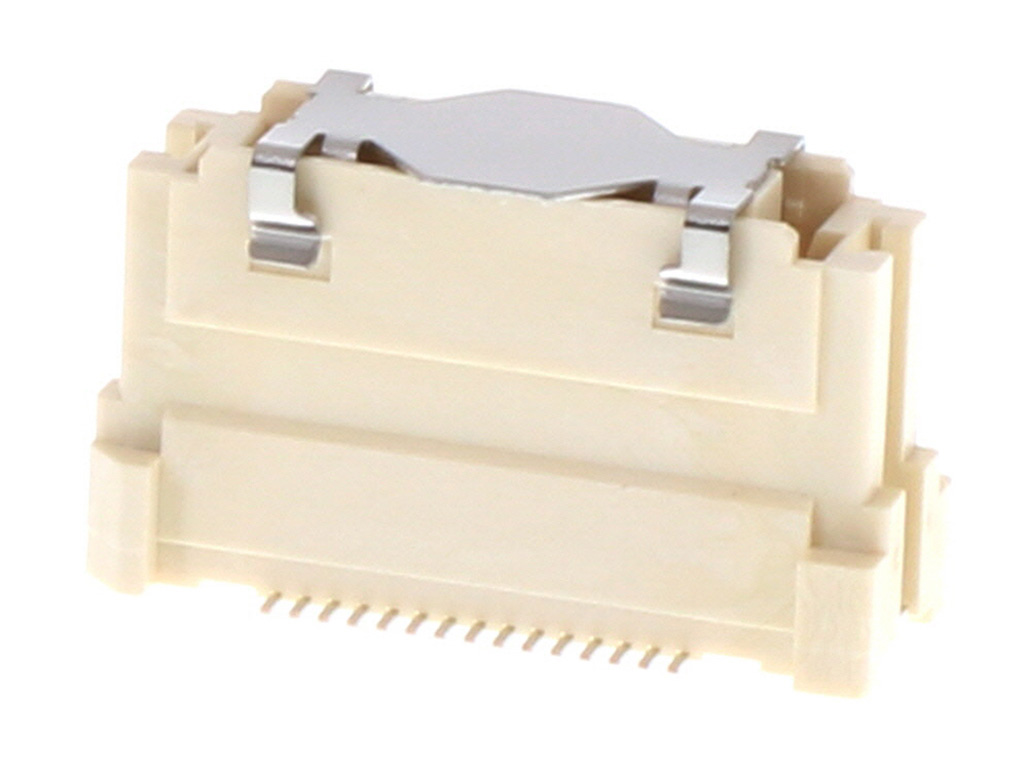

529010374 SlimStack by Molex
SlimStack Board-to-Board Connector, 0.635mm Pitch, 0.635 Series, Receptacle, 12.00 to 16.00mm Mated Height, 6.40mm Mated Width, with Vacuum Pick-Up Area, 30 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52901-0374,
0529010374 |
Where to Buy
Prices starting from US$1.29
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.14
|
2,200
in stock
|
Buy Now |
|
TME
from US$2.26
|
2,200
in stock
|
Buy Now |
|
Farnell
from US$5.11
|
1,980
in stock
|
Buy Now |
|
element14
from US$4.69
|
440
in stock
|
Buy Now |
|
RS
from US$3.69
|
0
in stock
|
Buy Now |
|
Avnet America
from US$4.73
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$5.51
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$4.64
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.73
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.81
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.29
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 30 |
| Circuits Maximum | 30 |
| Color Resin | White |
| Durability Mating Cycles Max | 50 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 12.00mm, 13.00mm, 14.00mm, 15.00mm, 16.00mm |
| Mated Width | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 949.696/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.00mm min |
| Pitch Mating Interface | 0.635mm |
| Polarized To Pcb | Yes |
| Robotic Placement | Vacuum Pick-Up Area |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.635 Btb St Rec Hsg Assy 30Cktembstppkg |Molex 52901-0374 | Newark Electronics |
| Connector: PCB to PCB | TME |
| 0.635 BTB ST REC HSG ASSY 30CKTEMBSTPPKG | Farnell |
| CONNECTOR, STACKING, RCPT, 30POS, 2ROW | element14 |
| Molex 52901-0374 Header | RS |
| Conn Stacking Receptacle 30 POS 12mm to 16mm Mated Height 0.635mm Solder ST Surface Mount | Avnet America |
| .635MM REC 02X15P VT SMT | TTI Americas |
| 0.635 BTB ST REC HSG ASSY 30C TEMBSTPPKG | Heilind Americas |
