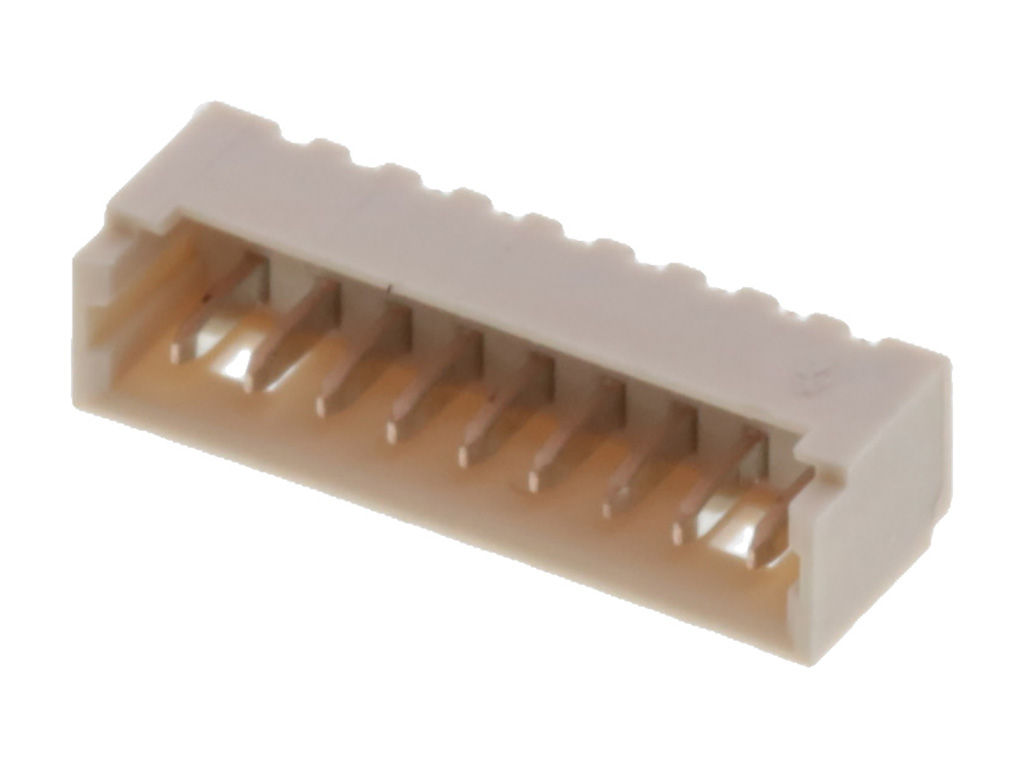

530470910 PicoBlade by Molex
1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 9 Circuits, Tray, 2.30mm PC Tail Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
53047-0910,
0530470910 |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.41
|
22,182
in stock
|
Buy Now |
|
Farnell
from US$0.37
|
19,964
in stock
|
Buy Now |
|
element14
from US$0.31
|
9,797
in stock
|
Buy Now |
|
TTI Europe
from US$0.25
|
8,700
in stock
|
Buy Now |
|
Rutronik
from US$0.28
|
7,880
in stock
|
Buy Now |
|
TME
from US$0.32
|
4,341
in stock
|
Buy Now |
|
RS
from US$0.35
|
293
in stock
|
Buy Now |
|
Compona
from US$0.26
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.21
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.24
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.16
|
0
in stock
|
Buy Now |
|
EME
from US$0.34
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PicoBlade |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 5.20mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 182.400/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 0.80mm |
| Pc Tail Length | 2.30mm |
| Pitch Mating Interface | 1.25mm |
| Plating Min Termination | 0.900µm |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftgehäuse-Platine 530470910 1 St. | Conrad |
| CONN, HEADER, 9POS, 1ROW, 1.25MM | Farnell |
| CONNECTOR, HEADER, 9POS, 1ROW, 1.25MM | element14 |
| 1.25 MM WIRE-TO-BOARD HEADER | TTI Europe |
| 09P HEADER STRAIGHT SHROUDED | Rutronik |
| Connector: wire-board | TME |
| Molex 53047-0910 PCB Header | RS |
| MOLEX 53047-0910 Plug Square 9p THT PicoBlade Wire-to-Board w Friction Lock | Compona |
| 9CKT STRIGHT WAFER ASSY | Heilind Americas |
| 1.25MM HDR 09P VT W/FRIC LOCK | TTI Asia |
