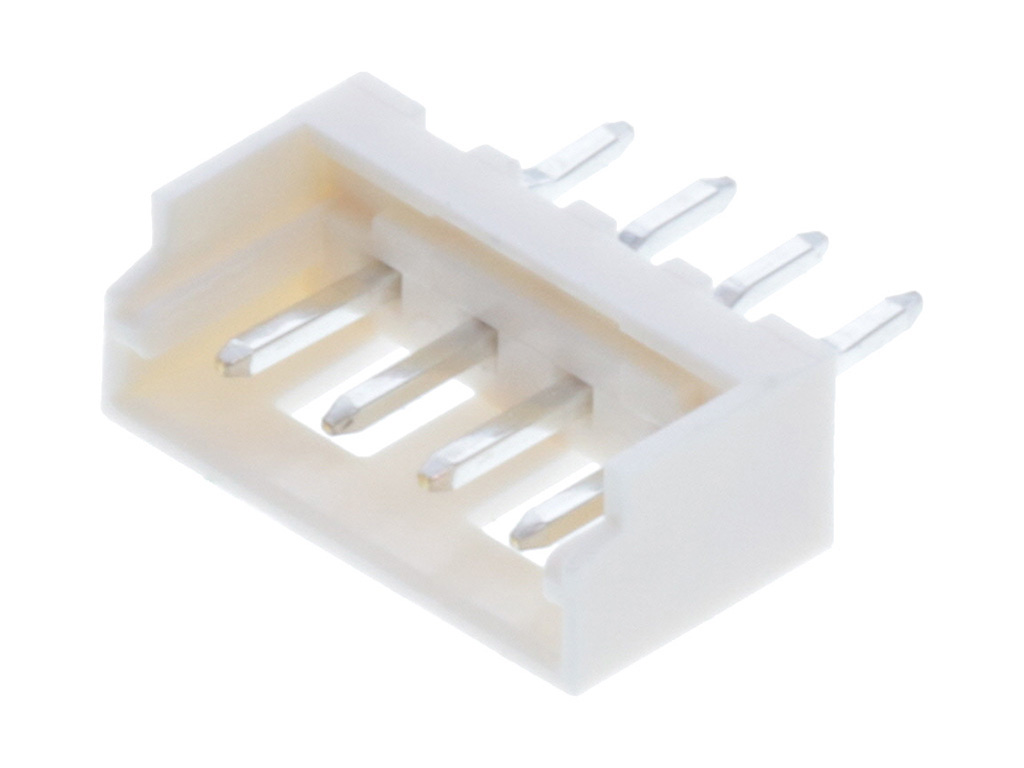

532530470 Micro-Latch by Molex
2.00mm Pitch, Micro-Latch PCB Header, Single Row, Vertical, Through Hole, Tin (Sn) Plating, 4 Circuits, Tray, 3.50mm PC Tail Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
53253-0470,
0532530470 |
Where to Buy
Prices starting from US$0.06
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$0.06
|
234,102
in stock
|
Buy Now |
|
Farnell
from US$0.15
|
79,088
in stock
|
Buy Now |
|
TTI Europe
from US$0.13
|
36,400
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.08
|
22,000
in stock
|
Buy Now |
|
Sager
from US$0.06
|
12,550
in stock
|
Buy Now |
|
CoreStaff
from US$0.15
|
11,629
in stock
|
Buy Now |
|
Newark Electronics
from US$0.16
|
7,833
in stock
|
Buy Now |
|
element14
from US$0.15
|
7,833
in stock
|
Buy Now |
|
Heilind Americas
from US$0.07
|
3,786
in stock
|
Buy Now |
|
RS
from US$0.18
|
2,279
in stock
|
Buy Now |
|
TME
from US$0.17
|
1,142
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.22
|
746
in stock
|
Buy Now |
|
Conrad
from US$0.16
|
746
in stock
|
Buy Now |
|
Avnet Abacus
-
|
16,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
160
in stock
|
Buy Now |
|
|
RS Americas
from US$0.21
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.13
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.09
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Latch |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 168.000/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn Partial Shrouded Header 4 POS 2mm Solder ST Through Hole Tray | Avnet America |
| CONN, HEADER, 4POS, 1ROW, 2MM | Farnell |
| 2.00 MM WIRE-TO-BOARD HEADER | TTI Europe |
| 2.00MM HDR 04P VT SQ PIN | TTI Americas |
| Headers & Wire Housings 2.00MM HDR 04P VT SQ PIN | Sager |
| Connector, Header, 4Pos, 1Row, 2Mm | Newark Electronics |
| CONNECTOR, HEADER, 4POS, 1ROW, 2MM | element14 |
| NEW 2.0 WTB WAFER ASSY STR 4C T | Heilind Americas |
| Molex 53253-0470 PCB Header | RS |
| Connector: wire-board | TME |
| Molex 532530470 Micro-latch PCB Header 2.00mm Pitch 4 Circuits | Rapid Electronics |
| Molex Stiftgehäuse-Platine 532530470 1 St. | Conrad |
| HEADER, MICROLATCH,2.0MM, VERTICAL,4WAY | RS Americas |
