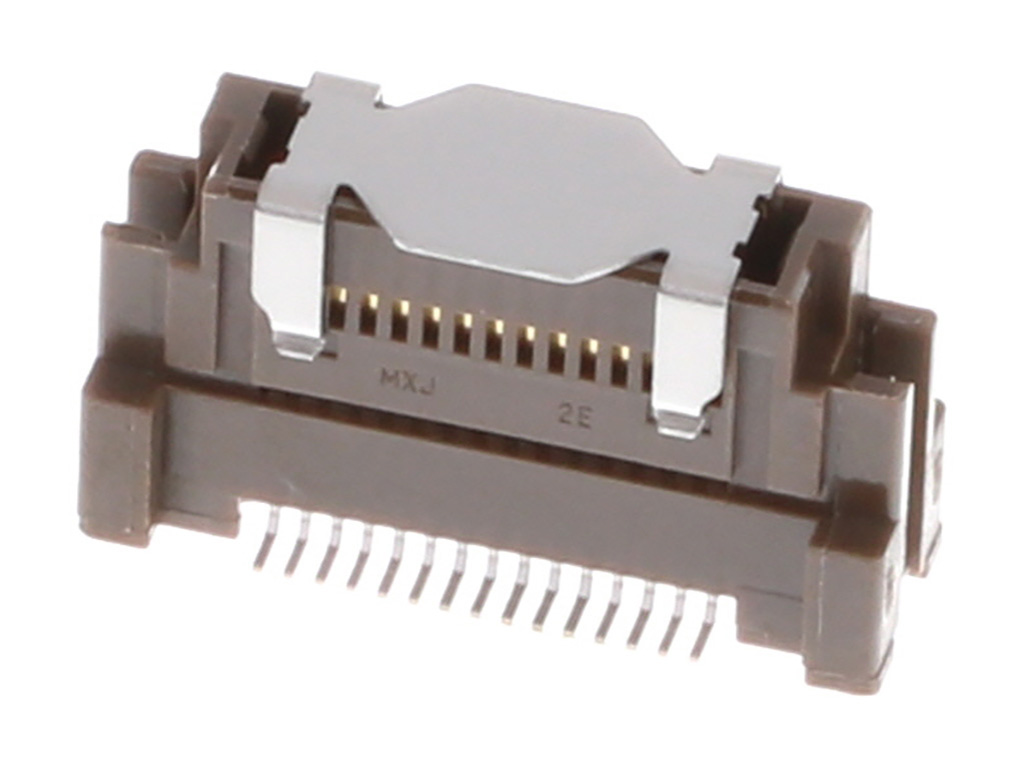

536270374 SlimStack by Molex
SlimStack Board-to-Board Connector, 0.635mm Pitch, 0.635 Series, Plug, 10.00 or 16.00mm Mated Height, 6.40mm Mated Width, 30 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
53627-0374,
0536270374 |
Where to Buy
Prices starting from US$1.42
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.70
|
3,500
in stock
|
Buy Now |
|
Farnell
from US$3.39
|
3,150
in stock
|
Buy Now |
|
CoreStaff
from US$1.97
|
2,755
in stock
|
Buy Now |
|
TTI Americas
from US$2.88
|
1,400
in stock
|
Buy Now |
|
Newark Electronics
from US$3.60
|
700
in stock
|
Buy Now |
|
element14
from US$3.18
|
700
in stock
|
Buy Now |
|
Rutronik
from US$2.12
|
0
in stock
|
Buy Now |
|
RS
from US$2.73
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.08
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.59
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.08
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.80
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.42
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 30 |
| Circuits Maximum | 30 |
| Color Resin | Brown |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 10.00mm, 16.00mm |
| Mated Width | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 706.841/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.00mm min |
| Pitch Mating Interface | 0.635mm |
| Polarized To Pcb | Yes |
| Robotic Placement | Metal Cap |
| Shrouded | Shrouded |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 30 Rastermaß: 0.635 mm 536270374 1 St. Tape on Full reel | Conrad |
| STACKING CONN, PLUG, 30POS, 2ROW | Farnell |
| .635MM HDR 02X15P VT SMT W/CVR | TTI Americas |
| Connector, Stacking, Header, 30Pos, 2Row | Newark Electronics |
| CONNECTOR, STACKING, HEADER, 30POS, 2ROW | element14 |
| 30P SLIMSTACK 0,635MM 180° SMT | Rutronik |
| Molex 53627-0374 PCB Header | RS |
| Conn Stacking Header 30 POS 10mm/16mm Mated Height 0.635mm Solder ST Surface Mount | Avnet America |
| 0.635 BTB PLG HSG ASSY 30CKT EMBSTP PKG | RS Americas |
| 0.635 BTB PLG HSG ASSY 30CKT MBSTP PKG | Heilind Americas |
