537480504 SlimStack by Molex

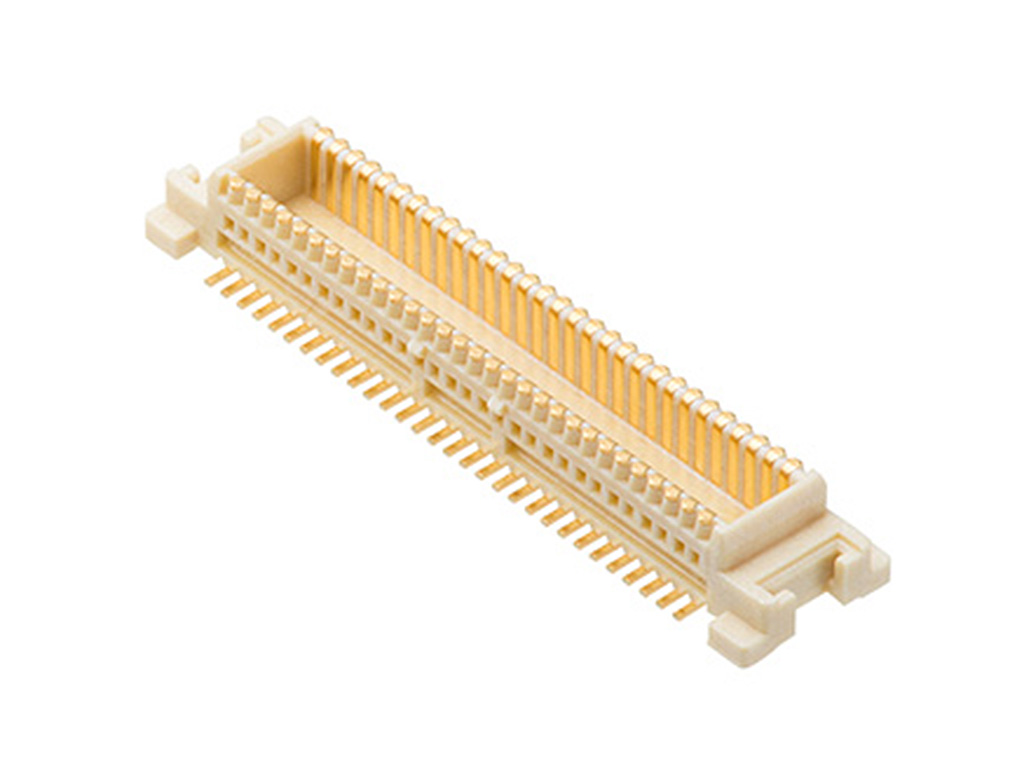

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 3.00mm Stack Height, 50 Circuits, with Vacuum Pick-up Tape
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
53748-0504,
0537480504 |
Where to Buy
Prices starting from US$2.09
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$7.52
|
24,526
in stock
|
Buy Now |
|
Farnell
from US$2.88
|
24,000
in stock
|
Buy Now |
|
Newark Electronics
from US$2.55
|
21,275
in stock
|
Buy Now |
|
element14
from US$3.11
|
1,529
in stock
|
Buy Now |
|
RS
from US$3.28
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.47
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.70
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.10
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$2.09
|
0
in stock
|
Buy Now |
|
EME
from US$2.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 50 |
| Circuits Maximum | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Mated Height | 3.00mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 129.385/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.100µm |
| Polarized To Pcb | No |
| Robotic Placement | Vacuum Pick-Up Tape |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 50 Rastermaß: 0.50 mm 537480504 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, HDR, 50POS, 2ROW, 0.5MM | Farnell |
| Connectors .50Mm 50P Vert Plug Smt 2R |Molex 53748-0504 | Newark Electronics |
| Molex 53748-0504 PCB Header | RS |
| Mezzanine Connector, Header, 0.5 mm, 2 Rows, 50 Contacts, Surface Mount, Brass | Avnet America |
| PLUG 0.5MM, SM, DUAL ROW, VERT,50W, | RS Americas |
| 0.5MM BTB STR PLUG 50CKT | TTI Americas |
| .50 MM BOARD-TO-BOARD PLUG | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 537480504?
Additional datasheets, footprints and schematics for 537480504 are listed on our Part Details page. You can also find images and similar parts to 537480504 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 537480504 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 537480504 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 537480504 fall under?
The 537480504 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 537480504 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 537480504 you can contact the distributor directly for product support, shipping queries etc.
Is the 537480504 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 537480504 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, element14 and RS have stock available or on a lead time for 537480504.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 537480504 often in real-time on the comparison pages.
What if I can't find stock of 537480504?
You can fill out our help required form which you can use to request a quote for 537480504 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
