538850408 SlimStack by Molex

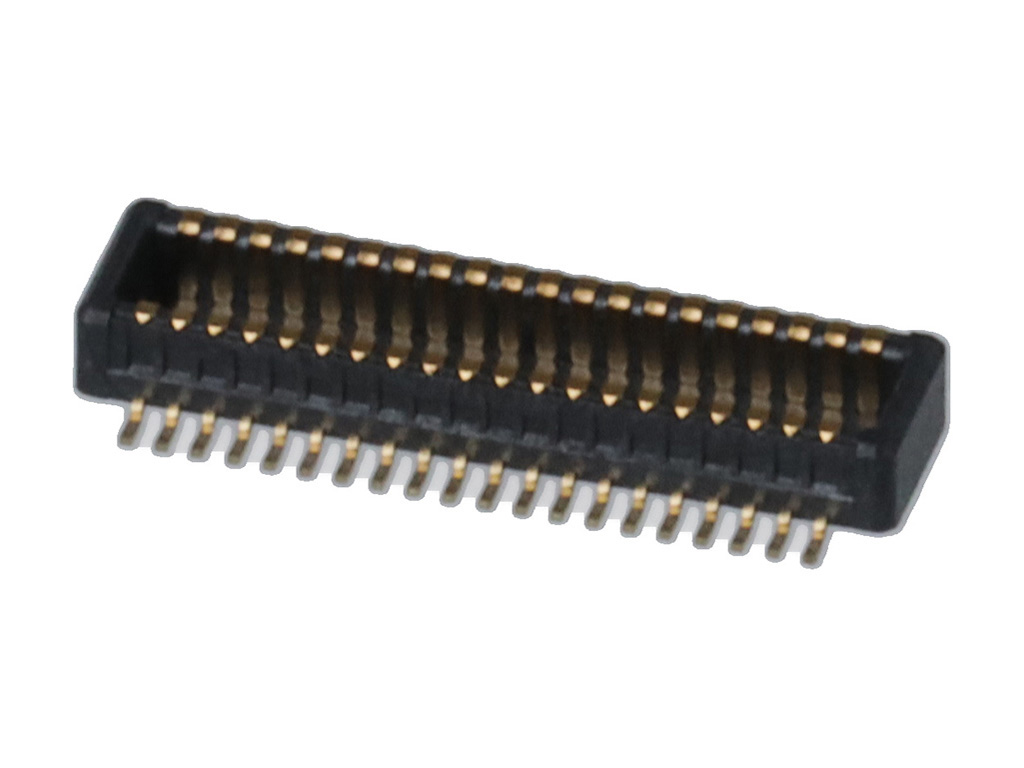

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, without Solder Tab, 40 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
53885-0408,
0538850408 |
Where to Buy
Prices starting from US$1.43
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$2.00
|
18,000
in stock
|
Buy Now |
|
Heilind Americas
from US$1.61
|
6,750
in stock
|
Buy Now |
|
Conrad
from US$2.71
|
3,000
in stock
|
Buy Now |
|
Farnell
from US$2.15
|
3,000
in stock
|
Buy Now |
|
element14
from US$2.27
|
2,556
in stock
|
Buy Now |
|
Newark Electronics
from US$2.56
|
1,298
in stock
|
Buy Now |
|
TME
from US$2.12
|
220
in stock
|
Buy Now |
|
RS
from US$3.39
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.08
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.43
|
0
in stock
|
Buy Now |
|
EME
from US$2.24
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 40 |
| Circuits Maximum | 40 |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 2.50mm |
| Mated Width | 5.30mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 74.529/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 0.64mm |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 0.102µm |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.50MM PITCH SLIMSTACK PLUG | TTI Europe |
| EMBSTP PKG FOR 0.5 BTB PLG OV RMLD 40CKT | Heilind Americas |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 40 Rastermaß: 0.5 mm 538850408 1 St. Tape on Full reel | Conrad |
| MEZZANINE - ARRAYS | Farnell |
| CONNECTOR, STACKING, HEADER, 40POS, 2ROW | element14 |
| Connector, Stacking, Header, 40Pos, 2Row Product Rangeslimstack 53885 Series No. Of Contacts40Contacts Genderheader Pitch Spacing0.5Mm Contact Termination Typesurface Mount No. Of Rows2Rows Row Pitch- Contact Rohs Compliant: Yes |Molex 53885-0408 | Newark Electronics |
| Connector: PCB to PCB | TME |
| Molex 53885-0408 PCB Header | RS |
| .5MM PLG 02X20P VT SMT W/O TAB | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 538850408?
Additional datasheets, footprints and schematics for 538850408 are listed on our Part Details page. You can also find images and similar parts to 538850408 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 538850408 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 538850408 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 538850408 fall under?
The 538850408 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 538850408 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 538850408 you can contact the distributor directly for product support, shipping queries etc.
Is the 538850408 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 538850408 have stock available?
Authorised distributors including TTI Europe, Heilind Americas, Conrad, Farnell and element14 have stock available or on a lead time for 538850408.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 538850408 often in real-time on the comparison pages.
What if I can't find stock of 538850408?
You can fill out our help required form which you can use to request a quote for 538850408 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
