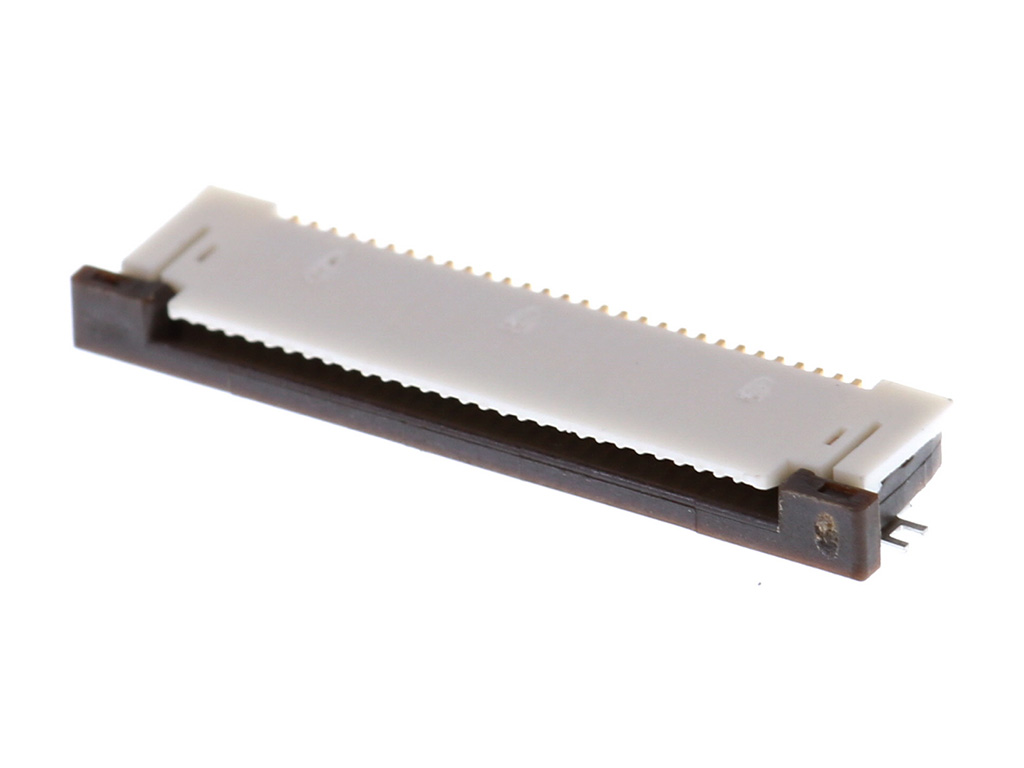

541043031 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 30 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54104-3031,
0541043031 |
Where to Buy
Prices starting from US$0.89
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.68
|
6,000
in stock
|
Buy Now |
|
Farnell
from US$1.72
|
5,625
in stock
|
Buy Now |
|
TTI Europe
from US$1.42
|
3,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.14
|
2,678
in stock
|
Buy Now |
|
TME
from US$1.41
|
1,809
in stock
|
Buy Now |
|
element14
from US$2.53
|
1,557
in stock
|
Buy Now |
|
RS
from US$2.44
|
1,297
in stock
|
Buy Now |
|
Rutronik
from US$1.15
|
0
in stock
|
Buy Now |
|
Compona
from US$1.01
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.50
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.89
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.10
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 30 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 355.810/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 30 Rastermaß: 0.5 mm 541043031 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 30POS, 1ROW, 0.5MM | Farnell |
| .50 MM FFC/FPC CONNECTOR 30CKT | TTI Europe |
| Connector, Ffc/Fpc, 30Pos, 1Row, 0.5Mm | Newark Electronics |
| Connector: FFC/FPC | TME |
| CONNECTOR, FFC/FPC, 30POS, 1ROW, 0.5MM | element14 |
| Molex 54104-3031 FPC Connector | RS |
| 30P FFC/FPC ZIF SMT 90° Top-Con 0.50mm | Rutronik |
| MOLEX 54104-3031 FFC/FPC Connector, SMT, ZIF, 30p, 90° Top Contact Style, Pitch 0.5mm Easy-On | Compona |
| 0.5 FPC ZIF SMT R/AUPRCONT30C TEMBSTPPKG | Heilind Americas |
| .5MM EASY-ON 30P RA SMT AU | TTI Asia |
