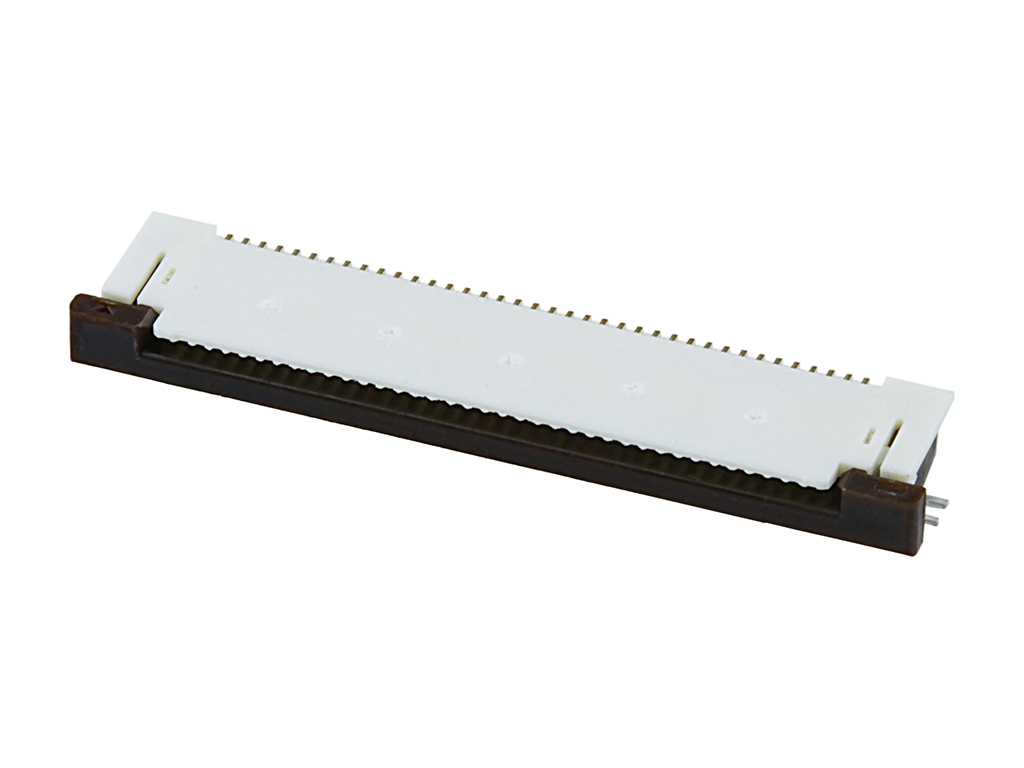

541043831 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 38 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54104-3831,
0541043831 |
Where to Buy
Prices starting from US$1.10
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.96
|
3,000
in stock
|
Buy Now |
|
TME
from US$1.32
|
3,000
in stock
|
Buy Now |
|
Conrad
from US$1.66
|
3,000
in stock
|
Buy Now |
|
Farnell
from US$2.03
|
2,700
in stock
|
Buy Now |
|
RS
from US$1.67
|
0
in stock
|
Buy Now |
|
element14
from US$1.50
|
0
in stock
|
Buy Now |
|
Sager
from US$1.90
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.87
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.10
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 38 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 434.766/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ffc/Fpc Board Connector, Zif, Surface Mount, Receptacle, 38, Top, 0.5 Mm |Molex 54104-3831 | Newark Electronics |
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 38 Rastermaß: 0.50 mm 541043831 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 38POS, 1ROW, 0.5MM | Farnell |
| Molex 54104-3831 FPC Connector | RS |
| CONNECTOR, FFC/FPC, 38POS, 1ROW, 0.5MM | element14 |
| FFC & FPC Connectors 0.5 FPC ZIF SMT R/AUprCont38CktEmbsTpPkg | Sager |
| 0.5 FPC ZIF SMT R/AUPRCONT38C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 541043831?
Additional datasheets, footprints and schematics for 541043831 are listed on our Part Details page. You can also find images and similar parts to 541043831 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 541043831 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 541043831 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 541043831 fall under?
The 541043831 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 541043831 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 541043831 you can contact the distributor directly for product support, shipping queries etc.
Is the 541043831 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 541043831 have stock available?
Authorised distributors including Newark Electronics, TME, Conrad, Farnell and RS have stock available or on a lead time for 541043831.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 541043831 often in real-time on the comparison pages.
What if I can't find stock of 541043831?
You can fill out our help required form which you can use to request a quote for 541043831 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
