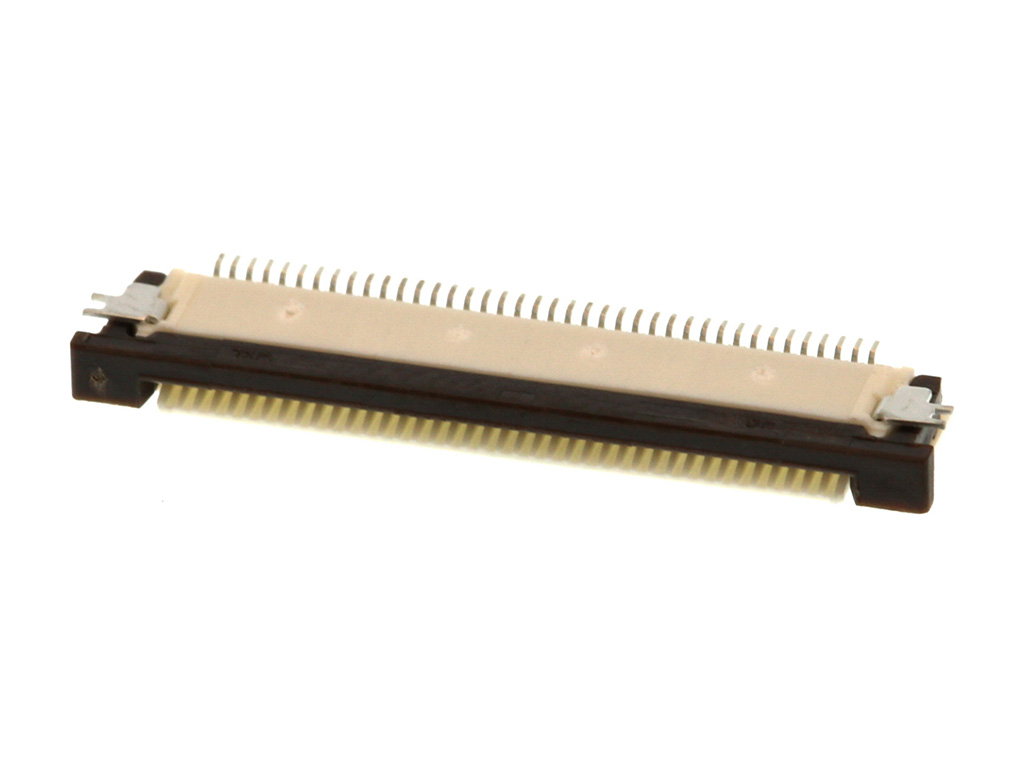

541044033 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 40 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54104-4033,
0541044033 |
Where to Buy
Prices starting from US$0.51
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.60
|
3,375
in stock
|
Buy Now |
|
TME
from US$0.51
|
2,780
in stock
|
Buy Now |
|
Conrad
from US$1,548.47
|
1
in stock
|
Buy Now |
|
Offical Electronic
-
|
800
in stock
|
Buy Now |
|
RS
from US$0.66
|
0
in stock
|
Buy Now |
|
element14
from US$1.36
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.72
|
0
in stock
|
Buy Now |
|
Newark Electronics
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 40 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 456.200/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.5 FPC ZIF HSG ASSY 40CK STP PKG | Heilind Americas |
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 40 Rastermaß: 0.5 mm 541044033 1500 St. Tape on Full reel | Conrad |
| Molex 54104-4033 FPC Connector | RS |
| CONNECTOR, FFC/FPC, 40POS, 1ROW, 0.5MM | element14 |
| FPC CONN, RCPT, 40POS, 1ROW, 0.5MM | Farnell |
| Connector, Ffc/Fpc, 40Pos, 1Row, 0.5Mm | Newark Electronics |
