541044631 Easy-On by Molex

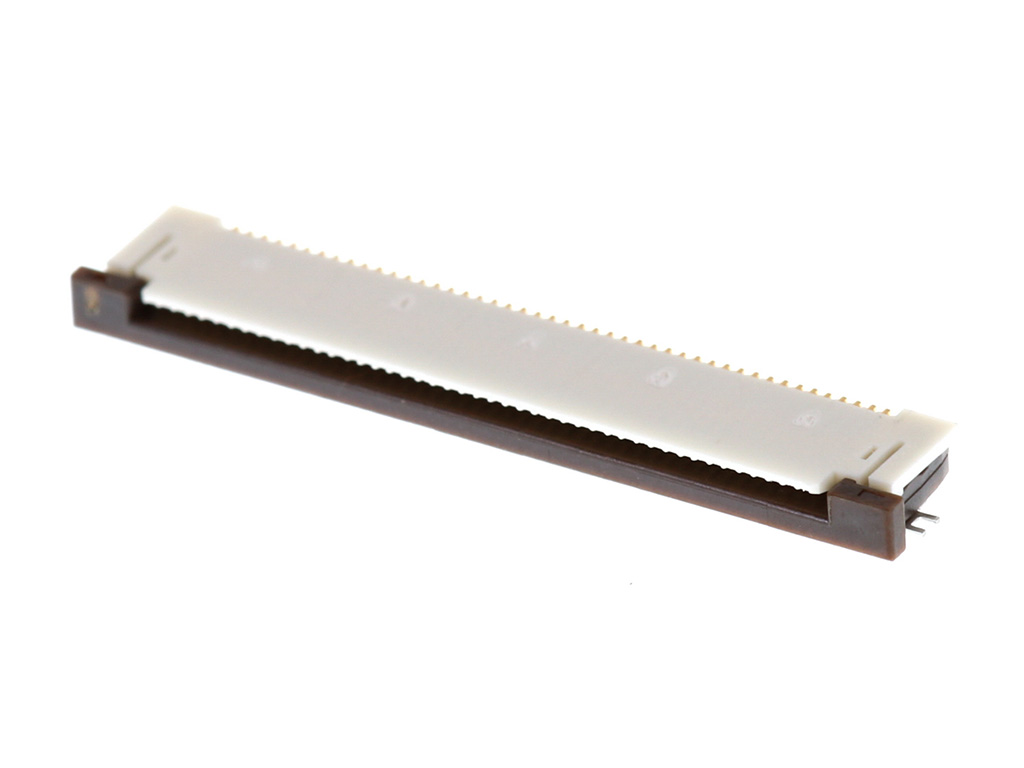

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 46 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54104-4631,
0541044631 |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 46 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 513.722/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Ffc/Fpc, 46Pos, 1Row, 0.5Mm | Newark Electronics |
| 0.5 FPC ZIF SMT R/AUPRCONT46C TEMBSTPPKG | Heilind Americas |
