541045033 Easy-On by Molex

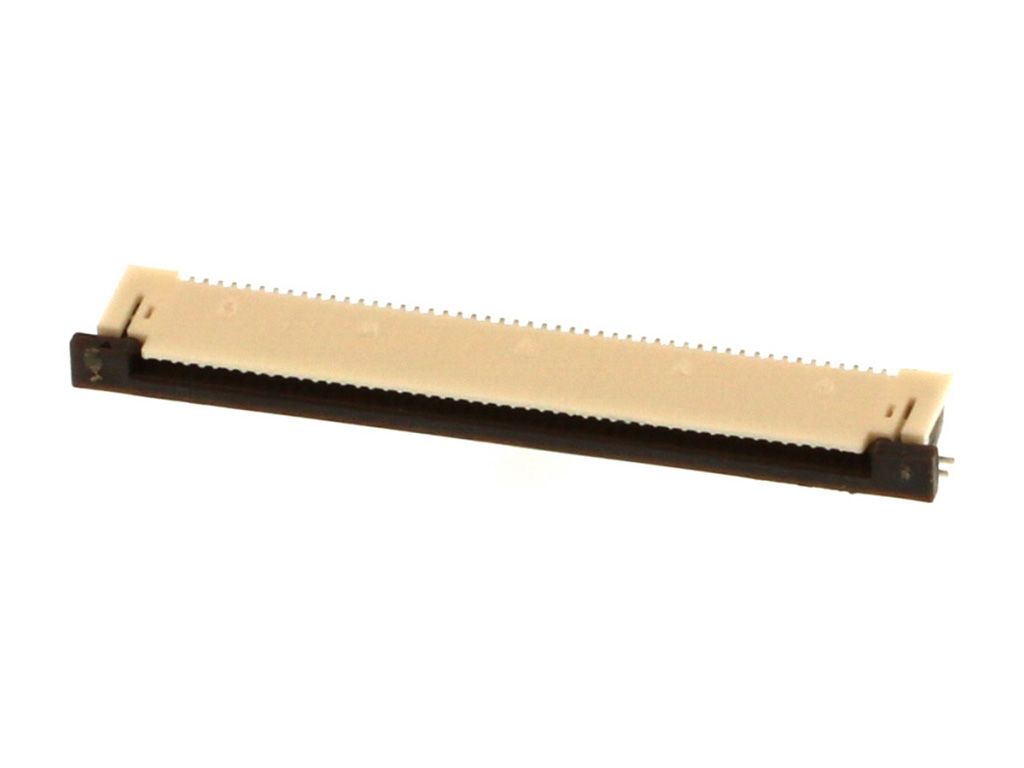

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 50 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54104-5033,
0541045033 |
Where to Buy
Prices starting from US$1.53
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 50 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 555.300/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 50 Rastermaß: 0.5 mm 541045033 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 50POS, 1ROW, 0.5MM | Farnell |
| 0.5 FPC ZIF HSG ASSY 50CK STP PKG | Heilind Americas |
| Molex 54104-5033 FPC Connector | RS |
| CONNECTOR, FFC/FPC, 50POS, 1ROW, 0.5MM | element14 |
