541323262 Easy-On by Molex

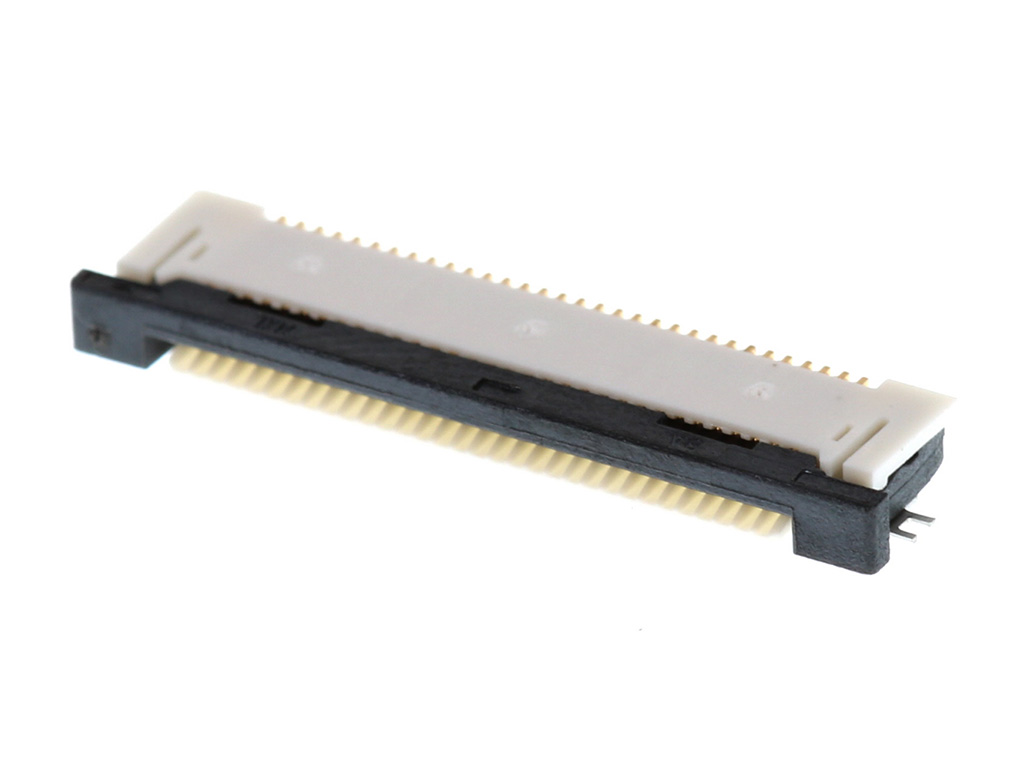

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 32 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54132-3262,
0541323262 |
Where to Buy
Prices starting from US$0.78
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.28
|
4,500
in stock
|
Buy Now |
|
TME
from US$1.06
|
4,500
in stock
|
Buy Now |
|
Conrad
from US$1.93
|
4,500
in stock
|
Buy Now |
|
Farnell
from US$1.34
|
4,500
in stock
|
Buy Now |
|
Rutronik
from US$1.13
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.82
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.54
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.88
|
0
in stock
|
Buy Now |
|
Sager
from US$1.16
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.89
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.78
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 32 |
| Color Resin | Black, Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 373.688/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ffc/Fpc Board Connector, Surface Mount, Receptacle, 32, Bottom, 0.5 Mm |Molex 54132-3262 | Newark Electronics |
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 32 Rastermaß: 0.50 mm 541323262 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 32POS, 1ROW, 0.5MM | Farnell |
| 32P FFC/FPC ZIF SMT 0.50mm | Rutronik |
| .5MM EASY-ON 32P RA SMT | TTI Americas |
| FFC & FPC Connectors .5MM EASY-ON 32P RA SMT | Sager |
| 0.5 FPC HSG ASSYBTMW/AUPLT32C TEMBSTPPKG | Heilind Americas |
