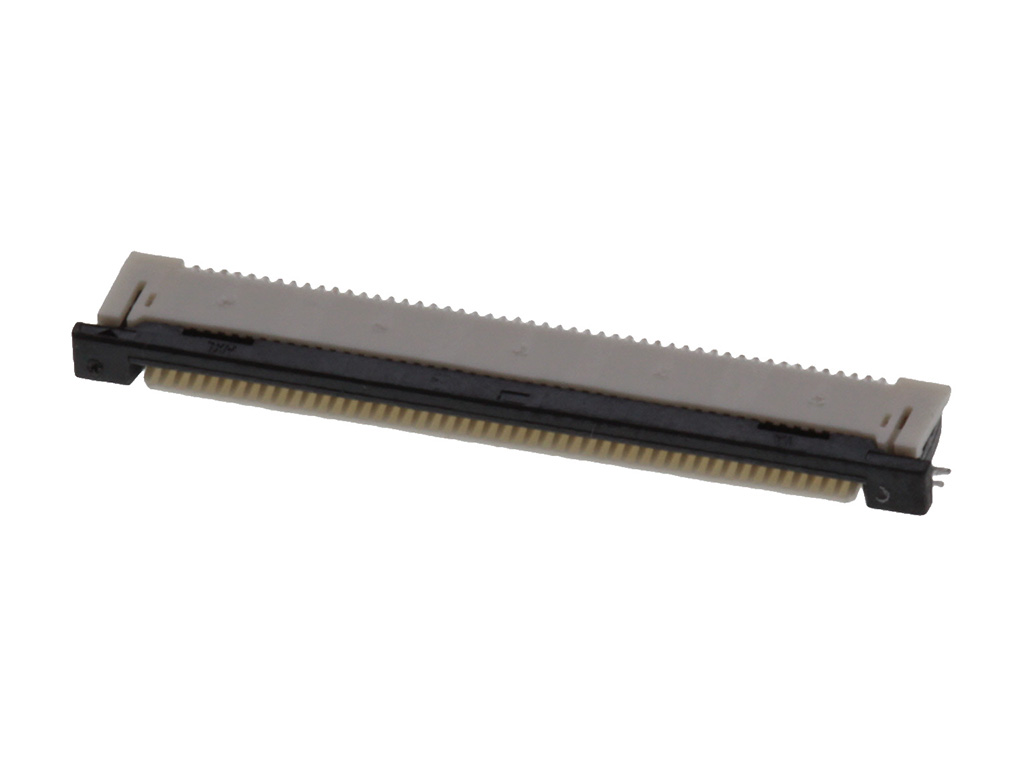

541325033 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 50 Circuits, Tin-Silver-Bismuth Plating
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54132-5033,
0541325033 |
Where to Buy
Prices starting from US$1.28
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.99
|
92,368
in stock
|
Buy Now |
|
Farnell
from US$2.06
|
85,500
in stock
|
Buy Now |
|
RS
from US$2.79
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.28
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.61
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.33
|
0
in stock
|
Buy Now |
|
element14
from US$1.35
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 50 |
| Color Resin | Black, Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 544.600/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 50 Rastermaß: 0.5 mm 541325033 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 50POS, 1ROW, 0.5MM | Farnell |
| Molex 54132-5033 FPC Connector | RS |
| Ffc/Fpc Board Connector, Surface Mount, Receptacle, 50, Bottom, 0.5 Mm Rohs Compliant: Yes |Molex 54132-5033. | Newark Electronics |
| Conn FFC/FPC Connector SKT 50 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
| 0.50MM FFC/FPC RIGHT ANGLE BOTTOM 50W | RS Americas |
| CONNECTOR, FFC/FPC, 50POS, 1ROW, 0.5MM | element14 |
