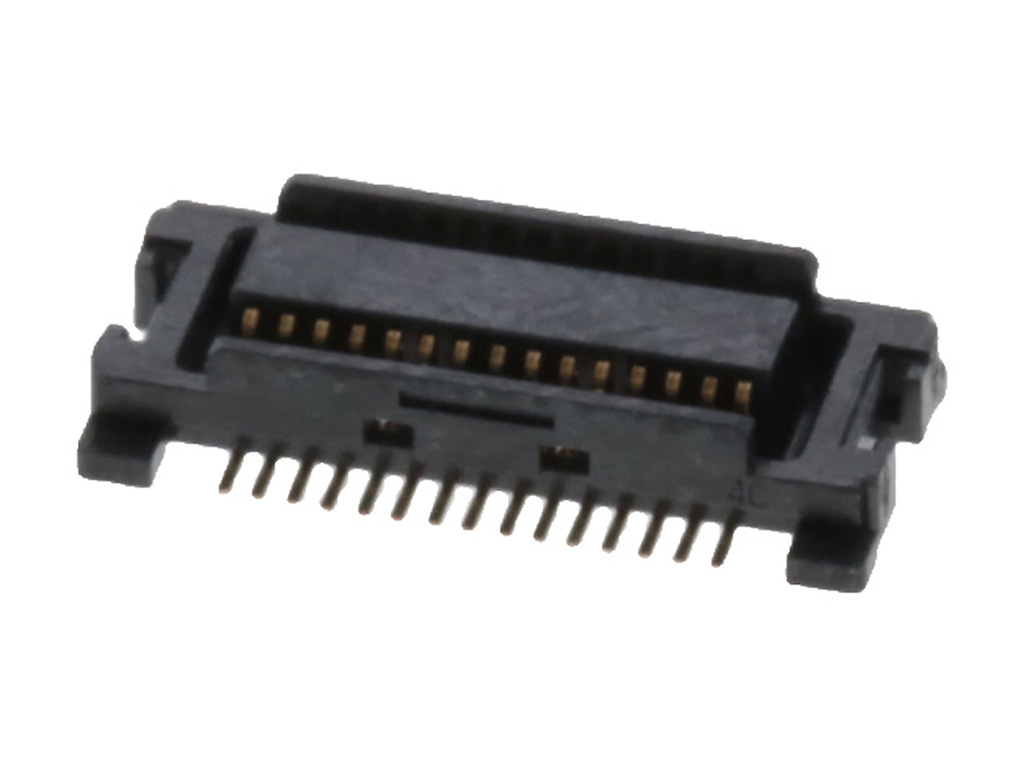

541670308 SlimStack by Molex
0.50mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical, 3.00 and 4.00mm Stacking Heights, Lower Circuit Size Version, Black, 30 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54167-0308,
0541670308 |
Where to Buy
Prices starting from US$1.45
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Circuits Loaded | 30 |
| Circuits Maximum | 30 |
| Glow Wire Capable | No |
| Mated Height | 3.00mm, 4.00mm |
| Mated Width | 5.40mm |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 125.201/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.254µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MEZZANINE ARRAYS | Farnell |
| Conn Board to Board F 30 POS 0.5mm Solder ST SMD Embossed T/R | Avnet America |
| 0.5 BTB REC HSG ASSY 30CKT EMBSTP PKG | RS Americas |
| Connector, Stacking, Rcpt, 30Pos, 2Row | Newark Electronics |
