545480871 Easy-On by Molex

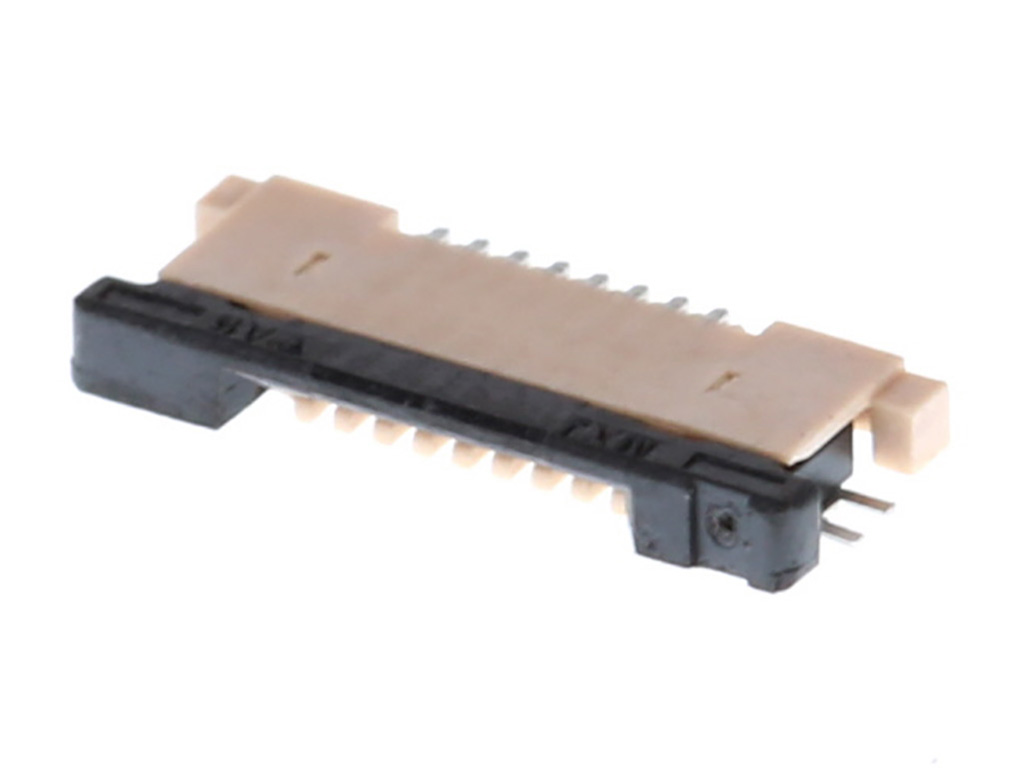

0.50mm Pitch Easy-On FFC/FPC Connector, 1.20mm Height, Right-Angle, Surface Mount, ZIF, Bottom Contact Style, 8 Circuits, Gold (Au) Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54548-0871,
0545480871 |
Where to Buy
Prices starting from US$0.79
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.97
|
3,000
in stock
|
Buy Now |
|
Conrad
from US$1.18
|
3,000
in stock
|
Buy Now |
|
Farnell
from US$1.28
|
2,700
in stock
|
Buy Now |
|
TTI Americas
from US$0.80
|
960
in stock
|
Buy Now |
|
RS
from US$1.16
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.79
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.05
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 8 |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.20mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 57.298/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 8 Rastermaß: 0.5 mm 545480871 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 8POS, 1ROW, 0.5MM | Farnell |
| .5MM REC 08P RA SMT BOT AU | TTI Americas |
| Molex 54548-0871 FPC Connector | RS |
| Conn FPC Connector SKT 8 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
| 0.5 FPC ZIF HSG ASSY 8CKT EMBSTP PKG | RS Americas |
| FFC & FPC Connectors .5MM REC 08P RA SMT BOT AU | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 545480871?
Additional datasheets, footprints and schematics for 545480871 are listed on our Part Details page. You can also find images and similar parts to 545480871 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 545480871 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 545480871 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 545480871 fall under?
The 545480871 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 545480871 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 545480871 you can contact the distributor directly for product support, shipping queries etc.
Is the 545480871 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 545480871 have stock available?
Authorised distributors including TME, Conrad, Farnell, TTI Americas and RS have stock available or on a lead time for 545480871.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 545480871 often in real-time on the comparison pages.
What if I can't find stock of 545480871?
You can fill out our help required form which you can use to request a quote for 545480871 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
