545481071 Easy-On by Molex

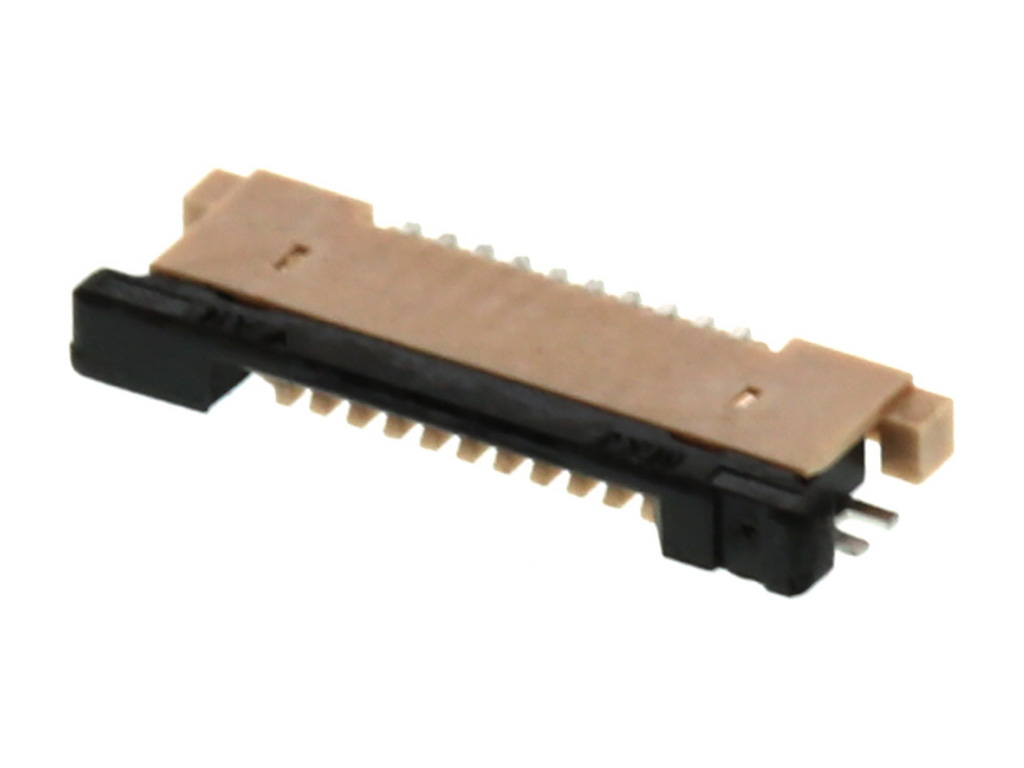

0.50mm Pitch Easy-On FFC/FPC Connector, 1.20mm Height, Right-Angle, Surface Mount, ZIF, Bottom Contact Style, 10 Circuits, Gold Contact Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54548-1071,
0545481071 |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 10 |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.20mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 64.572/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FPC CONN, RCPT, 10POS, 1ROW, 0.5MM | Farnell |
| Conn FPC Connector SKT 10 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
| 0.5 FPC ZIF HSG ASSY 10CKT EMBSTP PKG | RS Americas |
| Connector, Ffc/Fpc, 10Pos, 1Row, 0.5Mm | Newark Electronics |
| .5MM FFC/FPC 109 RA SMT | TTI Asia |
