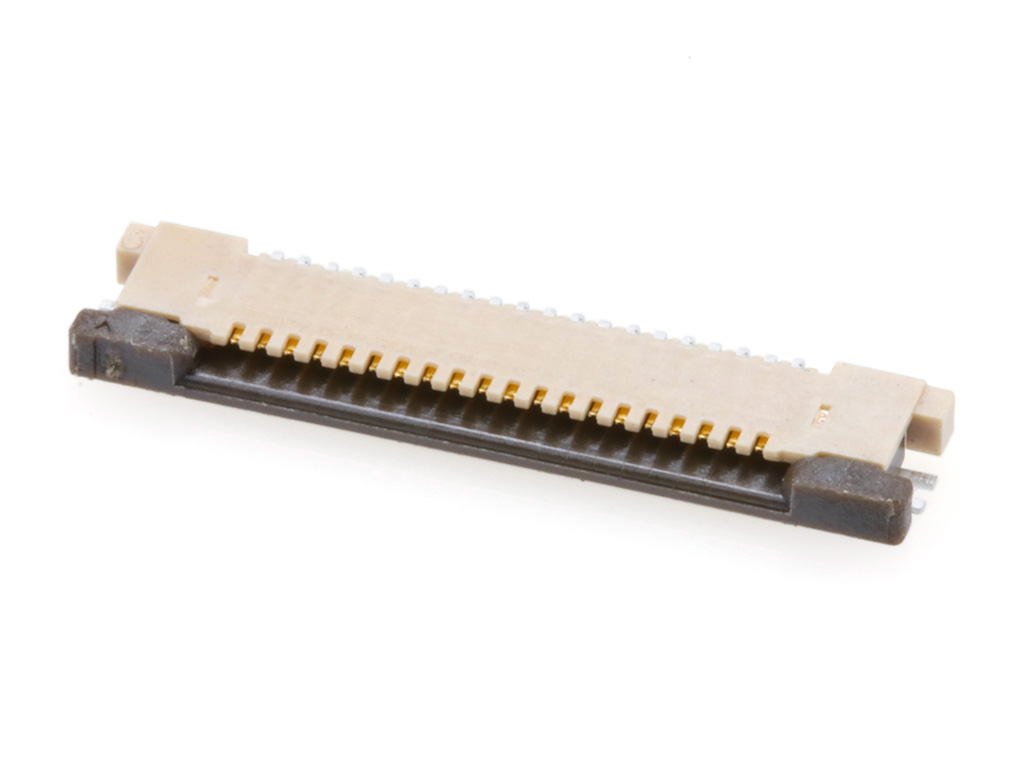

545502071 Easy-On by Molex
0.50mm Pitch Easy-On FFC/FPC Connector, 1.20mm Height, Right-Angle, Surface Mount, ZIF, Top Contact Style, 20 Circuits, Gold (Au) Contact Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54550-2071,
0545502071 |
Where to Buy
Prices starting from US$1.35
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 20 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.20mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 101.522/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .5MM EASY-ON HSG 20P RA SMT | TTI Americas |
| FPC CONN, RCPT, 20POS, 1ROW, 0.5MM | Farnell |
| Molex FFC/FPC-Anschluss 54550-2071 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| Molex 54550-2071 FPC Connector | RS |
| Conn FPC Connector SKT 20 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
