547220244 SlimStack by Molex

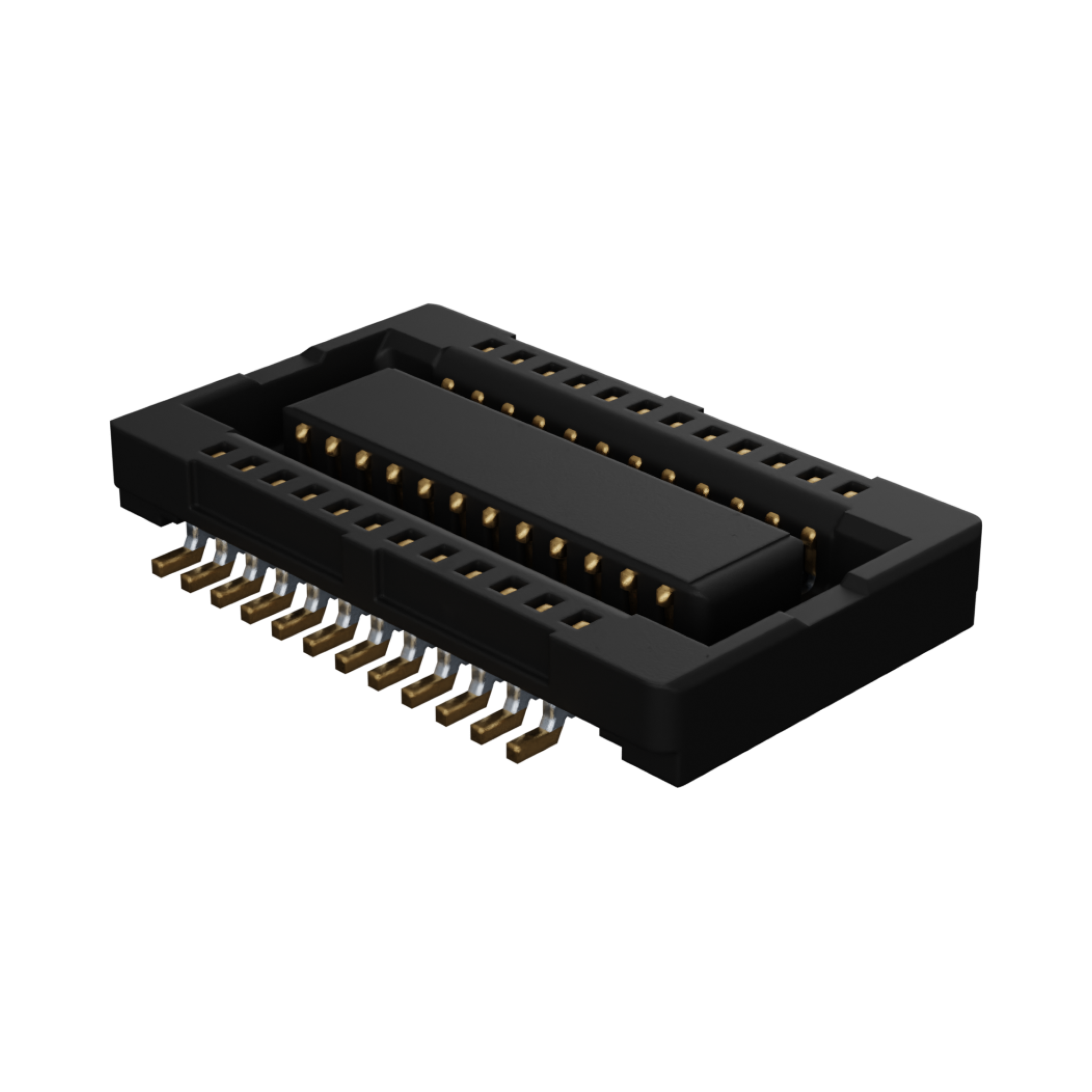

0.50mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical, 1.50mm Stacking Height, Lower Circuit Size Version, 24 Circuits, Gold Plating with Nickel Barrier Plating Between Contact and Tail
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54722-0244,
0547220244 |
Where to Buy
Prices starting from US$0.43
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.84
|
15,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.05
|
1,159
in stock
|
Buy Now |
|
Farnell
from US$1.30
|
1,159
in stock
|
Buy Now |
|
RS
from US$0.74
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.72
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.26
|
0
in stock
|
Buy Now |
|
Conrad
from US$2,151.58
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.69
|
0
in stock
|
Buy Now |
|
Sager
from US$0.75
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.77
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.43
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.66
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Mated Height | 1.50mm |
| Mated Width | 6.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 80.761/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
