547220604 SlimStack by Molex

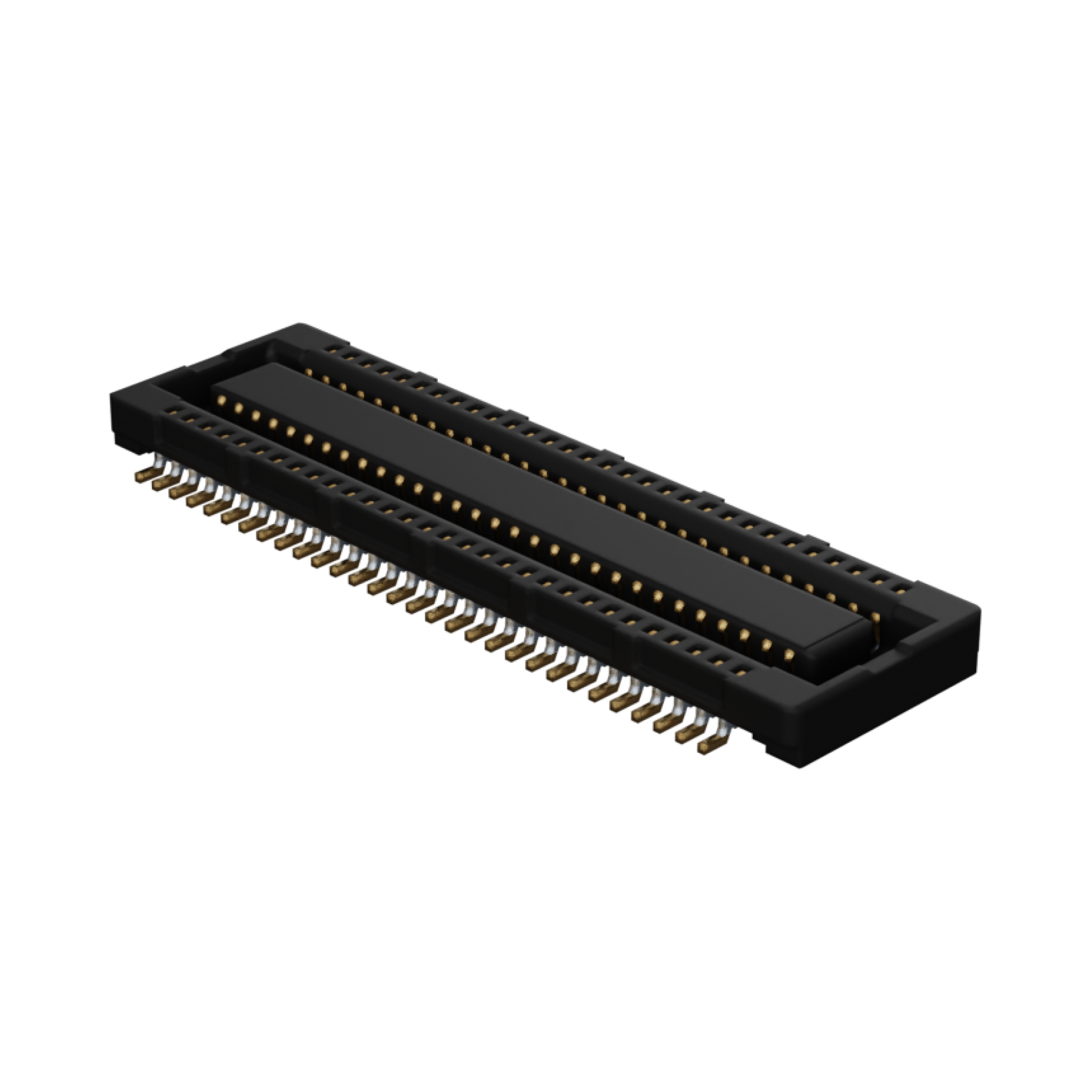

0.50mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical, 1.50mm Stacking Height, Lower Circuit Size Version, 60 Circuits, Gold Plating with Nickel Barrier Plating Between Contact and Tail
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54722-0604,
0547220604 |
Where to Buy
Prices starting from US$1.33
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.28
|
1,453
in stock
|
Buy Now |
|
Farnell
from US$2.41
|
1,453
in stock
|
Buy Now |
|
RS
from US$1.33
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.50
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.52
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.07
|
0
in stock
|
Buy Now |
|
Sager
from US$2.53
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Circuits Loaded | 60 |
| Circuits Maximum | 60 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Mated Height | 1.50mm |
| Mated Width | 6.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 175.801/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Stacking Board Connector, 1.5Mm Height, Slimstack Series, Receptacle, 0.5 Mm, 60, Surface Mount Rohs Compliant: Yes |Molex 54722-0604 | Newark Electronics |
| CONNECTOR, STACKING, RCPT, 60POS, 2ROW | Farnell |
| Molex 54722-0604 Connector | RS |
| SLIMSTACK SERIES 0.5MM 60 WAY 2 ROW STRAIGHT PCB SOCKET SMNT BOARD TO BOARD | RS Americas |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 60 Rastermaß: 0.5 mm 547220604 1 St. Tape on Full reel | Conrad |
| Board to Board & Mezzanine Connectors 0.5 BtB Rec Hsg Assy 60Ckt EmbsTp Pkg | Sager |
