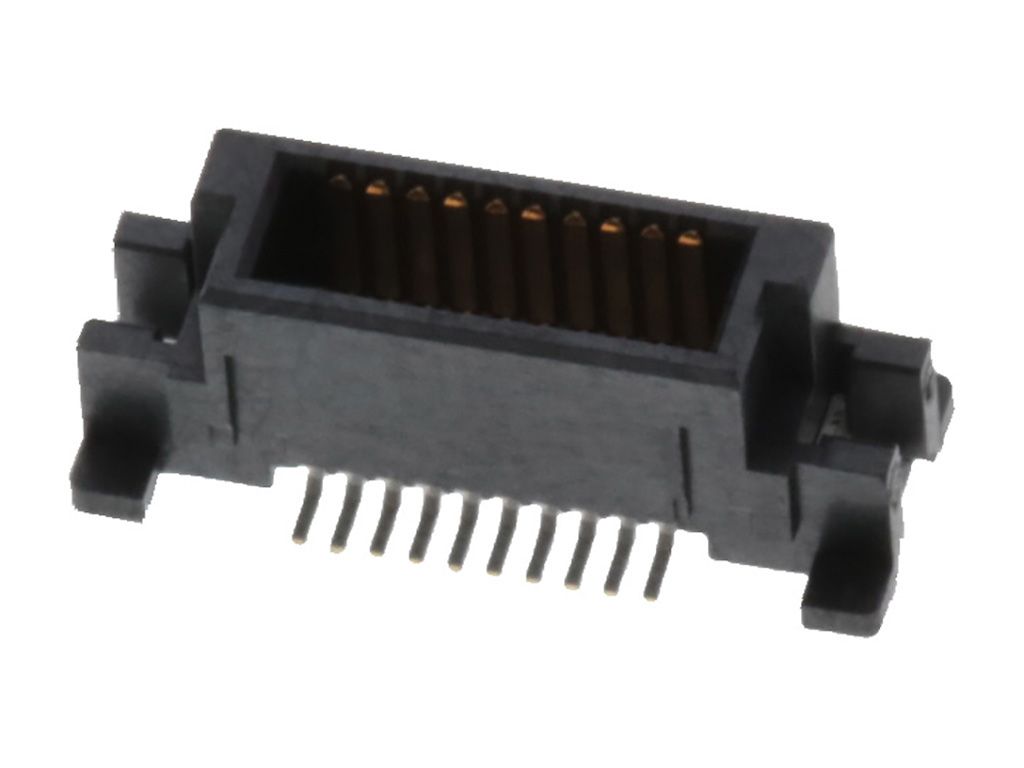

550910274 SlimStack by Molex
SlimStack Board-to-Board Connector, 0.635mm Pitch, 0.635 Series, Plug, 6.00 or 12.00mm Mated Height, 6.40mm Mated Width, 20 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55091-0274,
0550910274 |
Where to Buy
Prices starting from US$0.99
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.30
|
25,000
in stock
|
Buy Now |
|
Conrad
from US$3.01
|
24,000
in stock
|
Buy Now |
|
Farnell
from US$2.64
|
22,500
in stock
|
Buy Now |
|
TTI Europe
from US$1.85
|
4,000
in stock
|
Buy Now |
|
element14
from US$2.68
|
2,956
in stock
|
Buy Now |
|
RS
from US$2.40
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.88
|
0
in stock
|
Buy Now |
|
TME
from US$2.23
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.06
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$2.00
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.15
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.85
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.99
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 12.00mm, 6.00mm |
| Mated Width | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 263.772/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.635mm |
| Polarized To Pcb | Yes |
| Robotic Placement | Metal Cap |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Stacking Board Connector, Slimstack 55091 Series, Plug, 0.64 Mm, 20, Surface Mount |Molex 55091-0274 | Newark Electronics |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 20 Rastermaß: 0.635 mm 550910274 1 St. Tape on Full reel | Conrad |
| MEZZANINE - ARRAYS | Farnell |
| .635MM HDR 20CT VT SMT | TTI Europe |
| CONNECTOR, STACKING, HEADER, 20POS, 2ROW | element14 |
| Molex 55091-0274 PCB Header | RS |
| Mezzanine Connector, Header, 0.635 mm, 2 Rows, 20 Contacts, Surface Mount, Copper Alloy | Avnet America |
| Connector: PCB to PCB | TME |
| HEADER '0.635MM, SMT, DUAL ROW, VERT, 20W | RS Americas |
| .635MM HDR 02X10P VT SMT W/CVR | TTI Americas |
| 0.635 BTB PLG HSG ASSY 20CKT MBSTP PKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 550910274?
Additional datasheets, footprints and schematics for 550910274 are listed on our Part Details page. You can also find images and similar parts to 550910274 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 550910274 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 550910274 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 550910274 fall under?
The 550910274 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 550910274 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 550910274 you can contact the distributor directly for product support, shipping queries etc.
Is the 550910274 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
