550910474 SlimStack by Molex

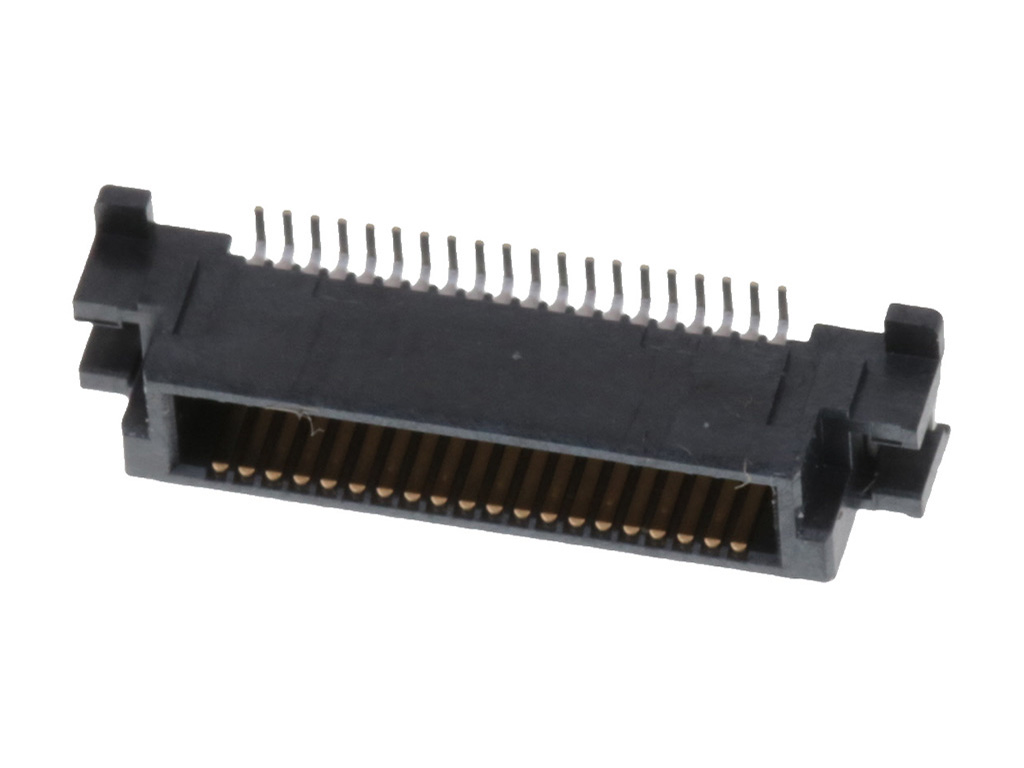

SlimStack Board-to-Board Connector, 0.635mm Pitch, 0.635 Series, Plug, 6.00 or 12.00mm Mated Height, 6.40mm Mated Width, 40 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55091-0474,
0550910474 |
Where to Buy
Prices starting from US$1.33
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.37
|
342,000
in stock
|
Buy Now |
|
TTI Americas
from US$1.59
|
11,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.92
|
4,000
in stock
|
Buy Now |
|
Conrad
from US$2.23
|
4,000
in stock
|
Buy Now |
|
Farnell
from US$2.13
|
3,750
in stock
|
Buy Now |
|
Avnet America
from US$1.88
|
0
in stock
|
Buy Now |
|
TME
from US$2.41
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.90
|
0
in stock
|
Buy Now |
|
element14
from US$2.23
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.06
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.33
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 40 |
| Circuits Maximum | 40 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 12.00mm, 6.00mm |
| Mated Width | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 407.473/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.635mm |
| Polarized To Pcb | Yes |
| Robotic Placement | Metal Cap |
| Shrouded | Shrouded |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.635 BTB PLG HSG ASSY 40CKT MBSTP PKG | Heilind Americas |
| .635 HDR SMT 02X20P VT | TTI Americas |
| 0.635 Btb Plg Hsg Assy 40Ckt Embstp Pkg |Molex 55091-0474 | Newark Electronics |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 40 Rastermaß: 0.635 mm 550910474 1 St. Tape on Full reel | Conrad |
| STACKING CONN, PLUG, 40POS, 2ROW | Farnell |
| Conn Board to Board HDR 40 POS 0.64mm Solder ST SMD Embossed T/R | Avnet America |
| Connector: PCB to PCB | TME |
| SLIMSTACK 0.635MM SMT PCB HEADER, 40P | RS Americas |
