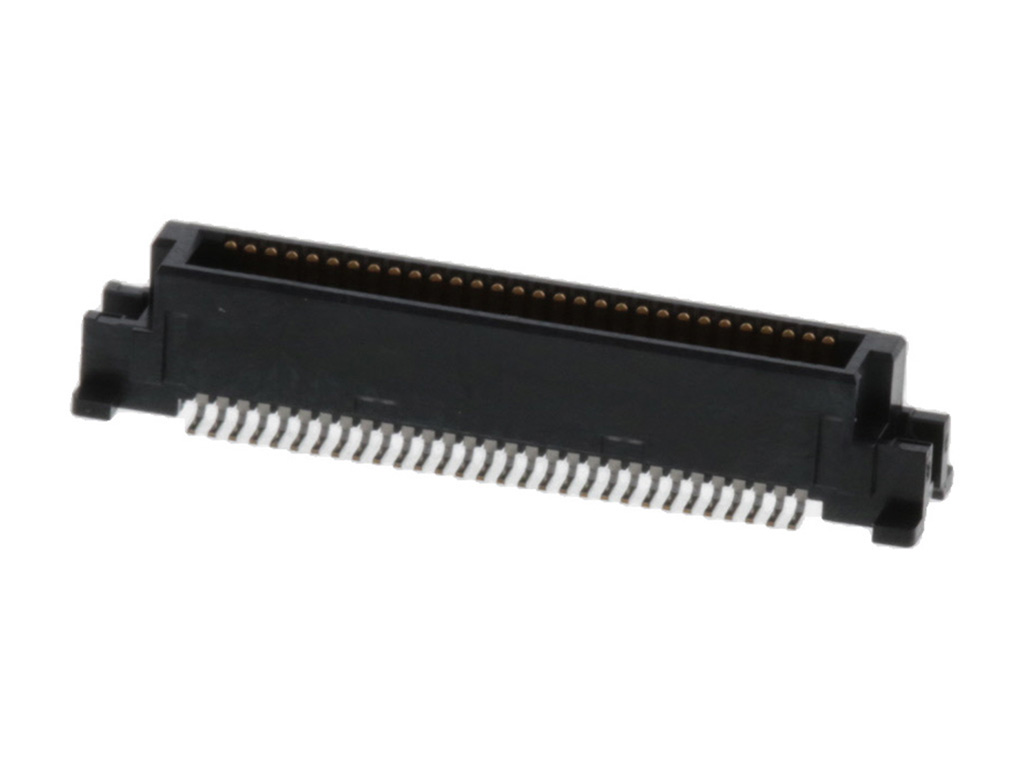

550910674 SlimStack by Molex
SlimStack Board-to-Board Connector, 0.635mm Pitch, 0.635 Series, Plug, 6.00 or 12.00mm Mated Height, 6.40mm Mated Width, 60 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55091-0674,
0550910674 |
Where to Buy
Prices starting from US$1.68
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$4.85
|
49,900
in stock
|
Buy Now |
|
Farnell
from US$3.54
|
47,000
in stock
|
Buy Now |
|
Newark Electronics
from US$3.08
|
42,900
in stock
|
Buy Now |
|
CoreStaff
from US$1.68
|
419
in stock
|
Buy Now |
|
element14
from US$3.76
|
17
in stock
|
Buy Now |
|
RS
from US$4.77
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.98
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.67
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$2.26
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 60 |
| Circuits Maximum | 60 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 12.00mm, 6.00mm |
| Mated Width | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 551.524/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.635mm |
| Polarized To Pcb | Yes |
| Robotic Placement | Metal Cap |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 60 Rastermaß: 0.635 mm 550910674 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, HDR, 60POS, 2ROW/0.635MM | Farnell |
| Connectors .635 Header Surface Mnt 60 Ckt |Molex 55091-0674 | Newark Electronics |
| CONNECTOR, STACKING, HEADER, 60POS, 2ROW | element14 |
| Molex 55091-0674 Connector | RS |
| 0.635 BTB PLG HSG ASSY 60CKT MBSTP PKG | Heilind Americas |
| .635MM HDR 02X30P VT SMT W/CAP | TTI Asia |
