550911274 SlimStack by Molex

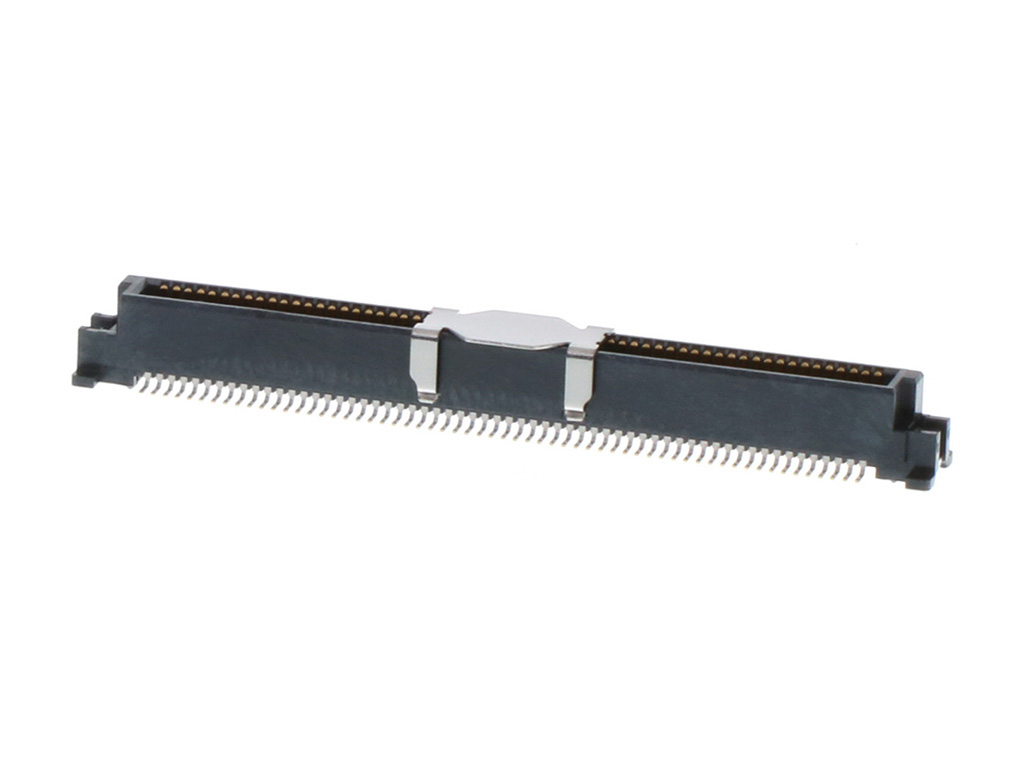

SlimStack Board-to-Board Connector, 0.635mm Pitch, 0.635 Series, Plug, 6.00 or 12.00mm Mated Height, 6.40mm Mated Width, 120 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55091-1274,
0550911274 |
Where to Buy
Prices starting from US$4.14
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$9.82
|
15,000
in stock
|
Buy Now |
|
Conrad
from US$14.40
|
12,000
in stock
|
Buy Now |
|
Farnell
from US$10.54
|
11,000
in stock
|
Buy Now |
|
RS
from US$5.17
|
0
in stock
|
Buy Now |
|
Avnet America
from US$8.35
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$10.16
|
0
in stock
|
Buy Now |
|
element14
from US$9.89
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$7.80
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$6.82
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$9.82
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.14
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$15.77
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 120 |
| Circuits Maximum | 120 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Mated Height | 12.00mm, 6.00mm |
| Mated Width | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 986.403/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.635mm |
| Polarized To Pcb | Yes |
| Robotic Placement | Metal Cap |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Slimstack Board-To-Board Connector 0.635Mm Pitch Rohs Compliant: Yes |Molex 55091-1274 | Newark Electronics |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 120 Rastermaß: 0.635 mm 550911274 1 St. Tape | Conrad |
| MEZZANINE CONN, RCPT, 120POS, 2ROW/0.4MM | Farnell |
| Molex 55091-1274 PCB Header | RS |
| HEADER '0.635MM, SMT, DUAL ROW, VERT,120W | RS Americas |
| .635MM HDR 02X60P VT SMT W/CVR | TTI Americas |
| 0.635 BTB SLIMSTACK HEADER 120 | TTI Europe |
| 0.635 BTB PLG HSG ASSY 120CKT EMBSTP PKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 550911274?
Additional datasheets, footprints and schematics for 550911274 are listed on our Part Details page. You can also find images and similar parts to 550911274 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 550911274 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 550911274 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 550911274 fall under?
The 550911274 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 550911274 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 550911274 you can contact the distributor directly for product support, shipping queries etc.
Is the 550911274 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 550911274 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, RS and Avnet America have stock available or on a lead time for 550911274.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 550911274 often in real-time on the comparison pages.
What if I can't find stock of 550911274?
You can fill out our help required form which you can use to request a quote for 550911274 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
