555600507 SlimStack by Molex

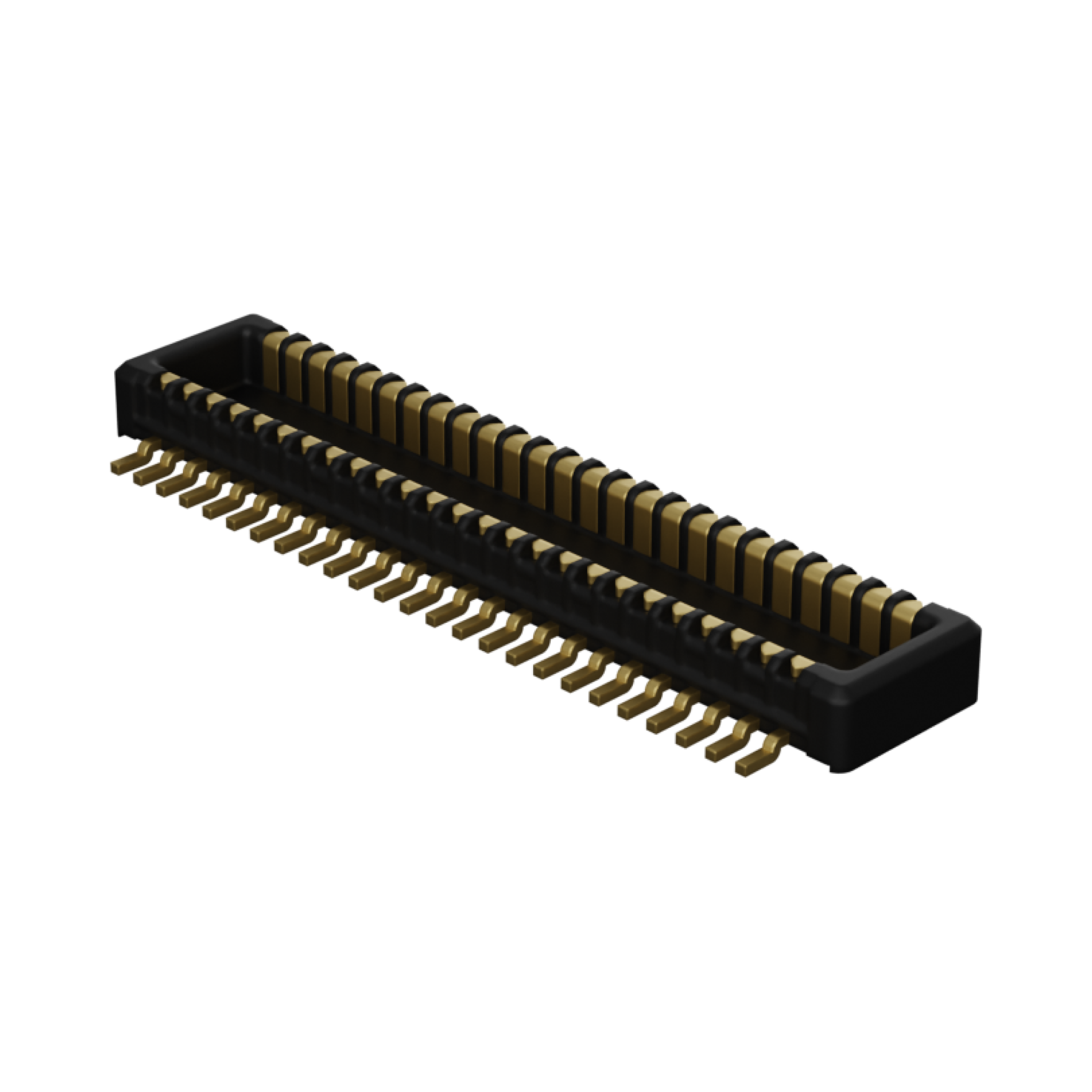

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 1.50mm Stack Height, 50 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55560-0507,
0555600507 |
Where to Buy
Prices starting from US$0.87
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.49
|
69,000
in stock
|
Buy Now |
|
TME
from US$1.26
|
69,000
in stock
|
Buy Now |
|
Conrad
from US$3.99
|
69,000
in stock
|
Buy Now |
|
Farnell
from US$2.88
|
66,000
in stock
|
Buy Now |
|
element14
from US$2.20
|
6,000
in stock
|
Buy Now |
|
RS
from US$2.34
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.48
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.50
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.87
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 50 |
| Circuits Maximum | 50 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm |
| Mated Width | 6.00mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 68.450/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 0.74mm |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 0.102µm |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.5 Btb Plg Hsg Assy 50Ckt Embstp Pkg |Molex 55560-0507 | Newark Electronics |
| Connector: PCB to PCB | TME |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 50 Rastermaß: 0.50 mm 555600507 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, HDR, 50POS, 2ROW, 0.5MM | Farnell |
| 0.50mm Pitch SlimStack Plug, Surface Mou | RS |
| 0.5 BTB PLG HSG ASSY 50CKT EM STP PKG | Heilind Americas |
| .5 BTB PLG HSG ASSY 50CKT | TTI Asia |
