555600607 SlimStack by Molex

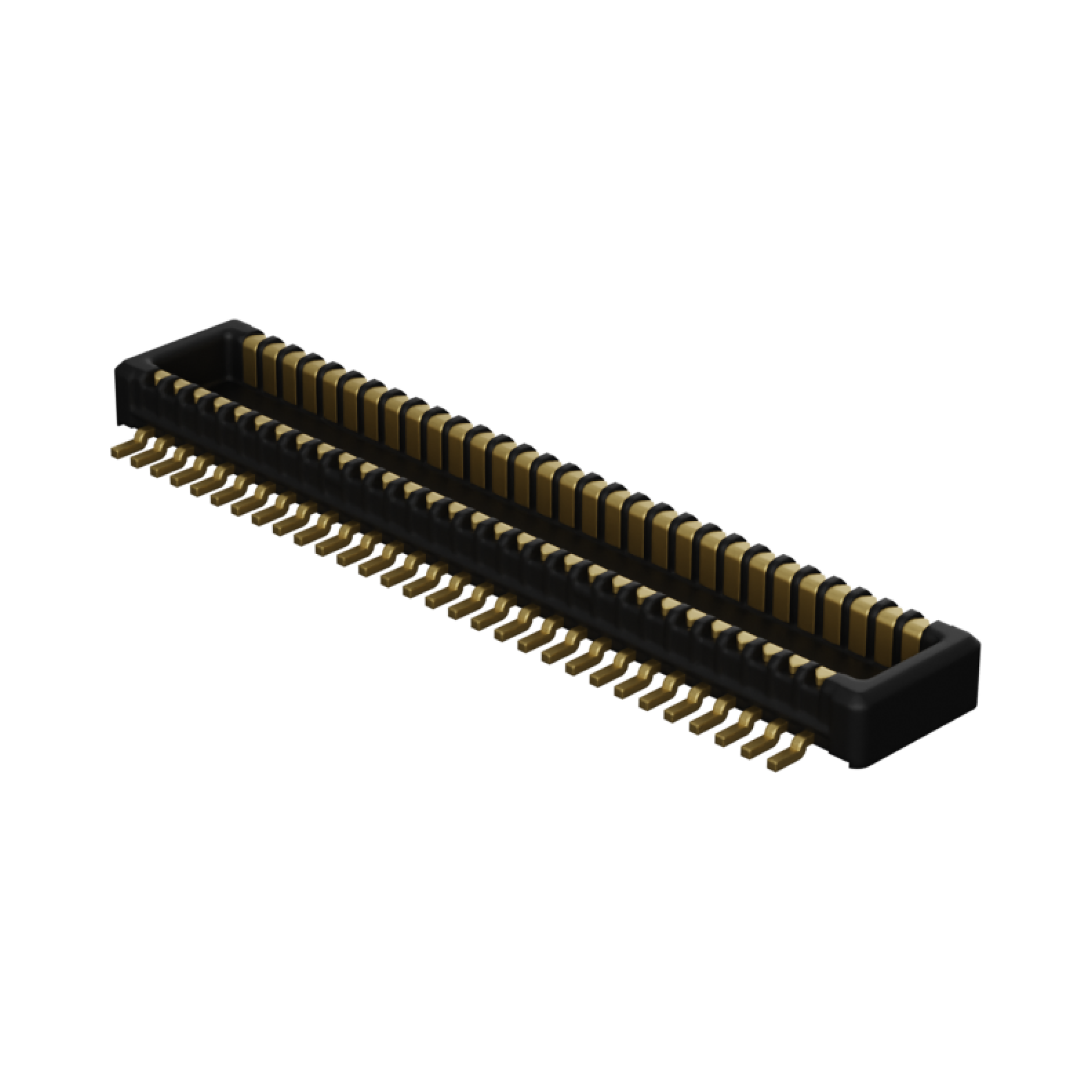

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 1.50mm Stack Height, 60 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55560-0607,
0555600607 |
Where to Buy
Prices starting from US$1.44
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$4.78
|
42,000
in stock
|
Buy Now |
|
Farnell
from US$3.11
|
38,625
in stock
|
Buy Now |
|
Newark Electronics
from US$2.86
|
36,000
in stock
|
Buy Now |
|
TME
from US$1.44
|
36,000
in stock
|
Buy Now |
|
TTI Americas
from US$2.85
|
9,000
in stock
|
Buy Now |
|
RS
from US$2.62
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.15
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.47
|
0
in stock
|
Buy Now |
|
Sager
from US$3.86
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.77
|
0
in stock
|
Buy Now |
|
EME
from US$1.72
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 60 |
| Circuits Maximum | 60 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm |
| Mated Width | 6.00mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 77.540/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 0.74mm |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 0.102µm |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 60 Rastermaß: 0.5 mm 555600607 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, HDR, 60POS, 2ROW, 0.5MM | Farnell |
| 0.5 Btb Plg Hsg Assy 60Ckt Embstp Pkg |Molex 55560-0607 | Newark Electronics |
| Connector: PCB to PCB | TME |
| .5MM PLG 02X30P VT SMT | TTI Americas |
| Molex 55560-0607 Plug | RS |
| 60W D/R BTB VERTICAL PLUG, SMT,0.5MM | RS Americas |
| Board to Board & Mezzanine Connectors .5MM PLG 02X30P VT SMT | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 555600607?
Additional datasheets, footprints and schematics for 555600607 are listed on our Part Details page. You can also find images and similar parts to 555600607 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 555600607 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 555600607 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 555600607 fall under?
The 555600607 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 555600607 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 555600607 you can contact the distributor directly for product support, shipping queries etc.
Is the 555600607 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 555600607 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, TME and TTI Americas have stock available or on a lead time for 555600607.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 555600607 often in real-time on the comparison pages.
What if I can't find stock of 555600607?
You can fill out our help required form which you can use to request a quote for 555600607 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
