559090274 SlimStack by Molex

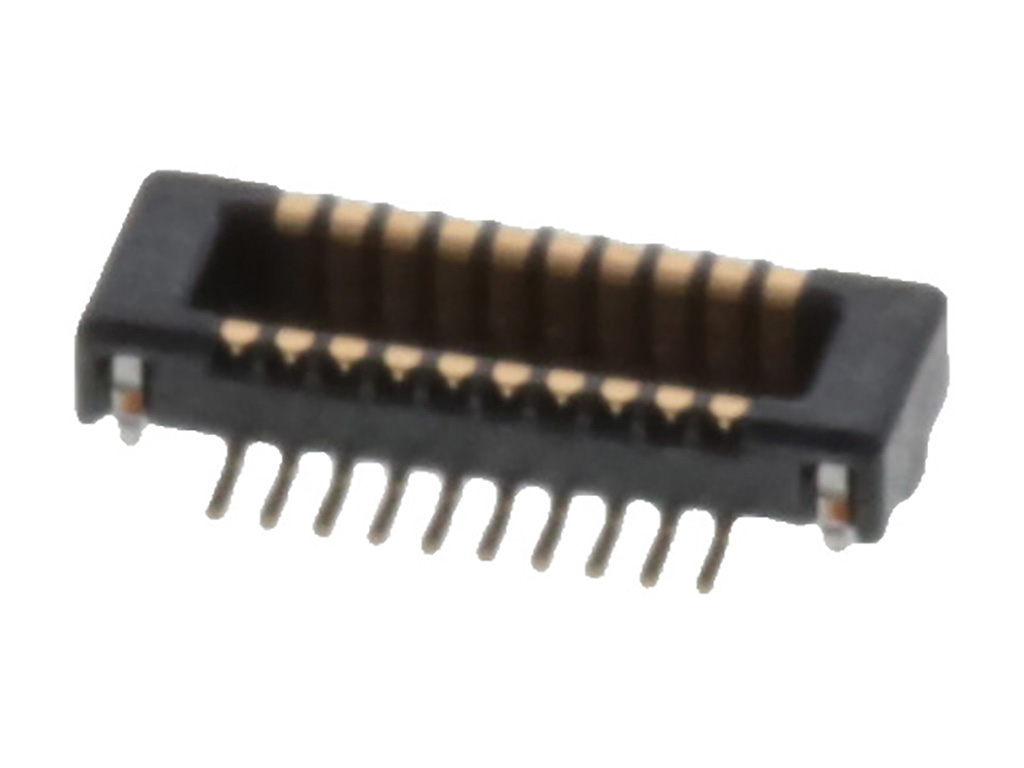

SlimStack Board-to-Board Plug, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 1.80mm Mated Height, 3.40 or 4.20mm Mated Width, 20 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55909-0274,
0559090274 |
Where to Buy
Prices starting from US$0.35
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.77
|
75,274
in stock
|
Buy Now |
|
Farnell
from US$1.24
|
68,000
in stock
|
Buy Now |
|
TME
from US$0.51
|
57,500
in stock
|
Buy Now |
|
element14
from US$1.24
|
743
in stock
|
Buy Now |
|
Newark Electronics
from US$1.26
|
158
in stock
|
Buy Now |
|
RS
from US$0.97
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.89
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.70
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.05
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.35
|
0
in stock
|
Buy Now |
|
EME
from US$0.63
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm, 1.80mm |
| Mated Width | 3.40mm, 4.20mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 23.630/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.40mm |
| Pitch Termination Interface | 0.40mm |
| Plating Min Mating | 0.200µm |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 20 Rastermaß: 0.4 mm 559090274 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, HDR, 20POS, 2ROW, 0.4MM | Farnell |
| Connector: PCB to PCB | TME |
| CONN, STACKING, HEADER, 20POS, 2ROW | element14 |
| Conn, Stacking, Header, 20Pos, 2Row | Newark Electronics |
| Molex 55909-0274 PCB Header | RS |
| Conn Board to Board PL 20 POS 0.4mm Solder ST SMD Embossed T/R | Avnet America |
| PLUG 20W D/R BTB SMT 0.4MM 55909 SERIES | RS Americas |
| 0.4 BTB PLG ASSY J-BENDTL 20C TEMBSTPPKG | Heilind Americas |
| 0.4 BTB PLG ASSY J-BENDTL 20CK | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 559090274?
Additional datasheets, footprints and schematics for 559090274 are listed on our Part Details page. You can also find images and similar parts to 559090274 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 559090274 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 559090274 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 559090274 fall under?
The 559090274 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 559090274 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 559090274 you can contact the distributor directly for product support, shipping queries etc.
Is the 559090274 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 559090274 have stock available?
Authorised distributors including Conrad, Farnell, TME, element14 and Newark Electronics have stock available or on a lead time for 559090274.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 559090274 often in real-time on the comparison pages.
What if I can't find stock of 559090274?
You can fill out our help required form which you can use to request a quote for 559090274 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
