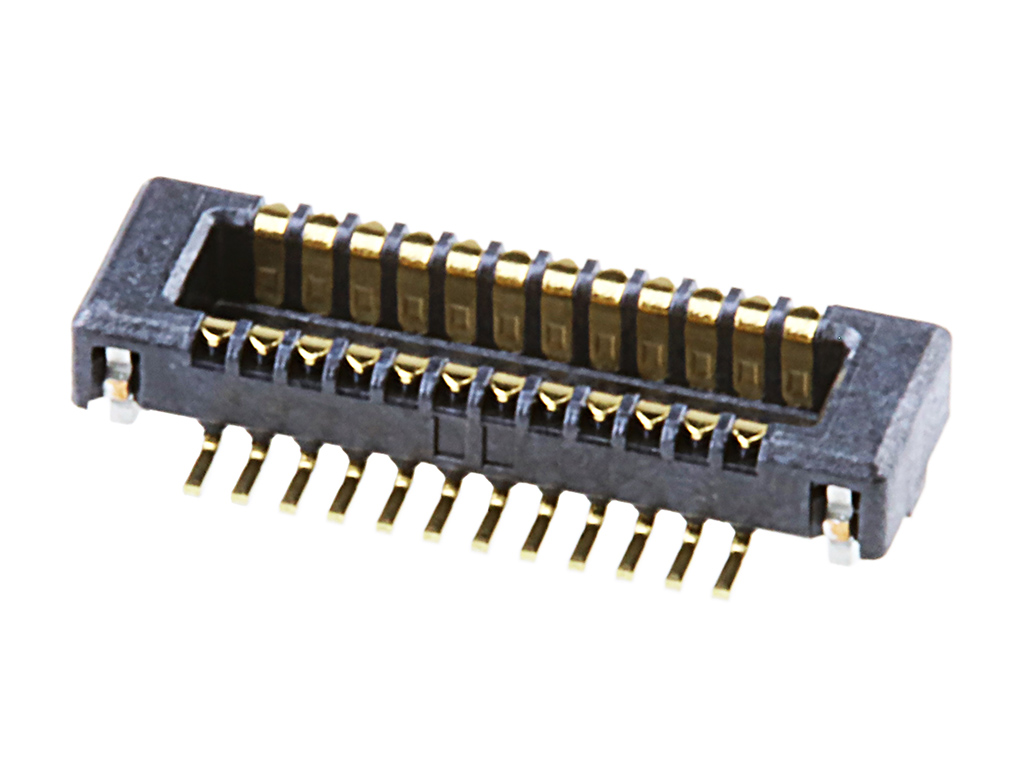

SlimStack Board-to-Board Plug, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 1.80mm Mated Height, 3.40 or 4.20mm Mated Width, 24 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55909-2474,
0559092474 |
Where to Buy
Prices starting from US$0.62
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.08
|
254,890
in stock
|
Buy Now |
|
Farnell
from US$1.41
|
230,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.28
|
30,000
in stock
|
Buy Now |
|
RS
from US$1.13
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.88
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.99
|
0
in stock
|
Buy Now |
|
Compona
from US$0.71
|
0
in stock
|
Buy Now |
|
Sager
from US$1.24
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.62
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm, 1.80mm |
| Mated Width | 3.40mm, 4.20mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 26.610/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.40mm |
| Pitch Termination Interface | 0.40mm |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
