5600200421 DuraClik by Molex

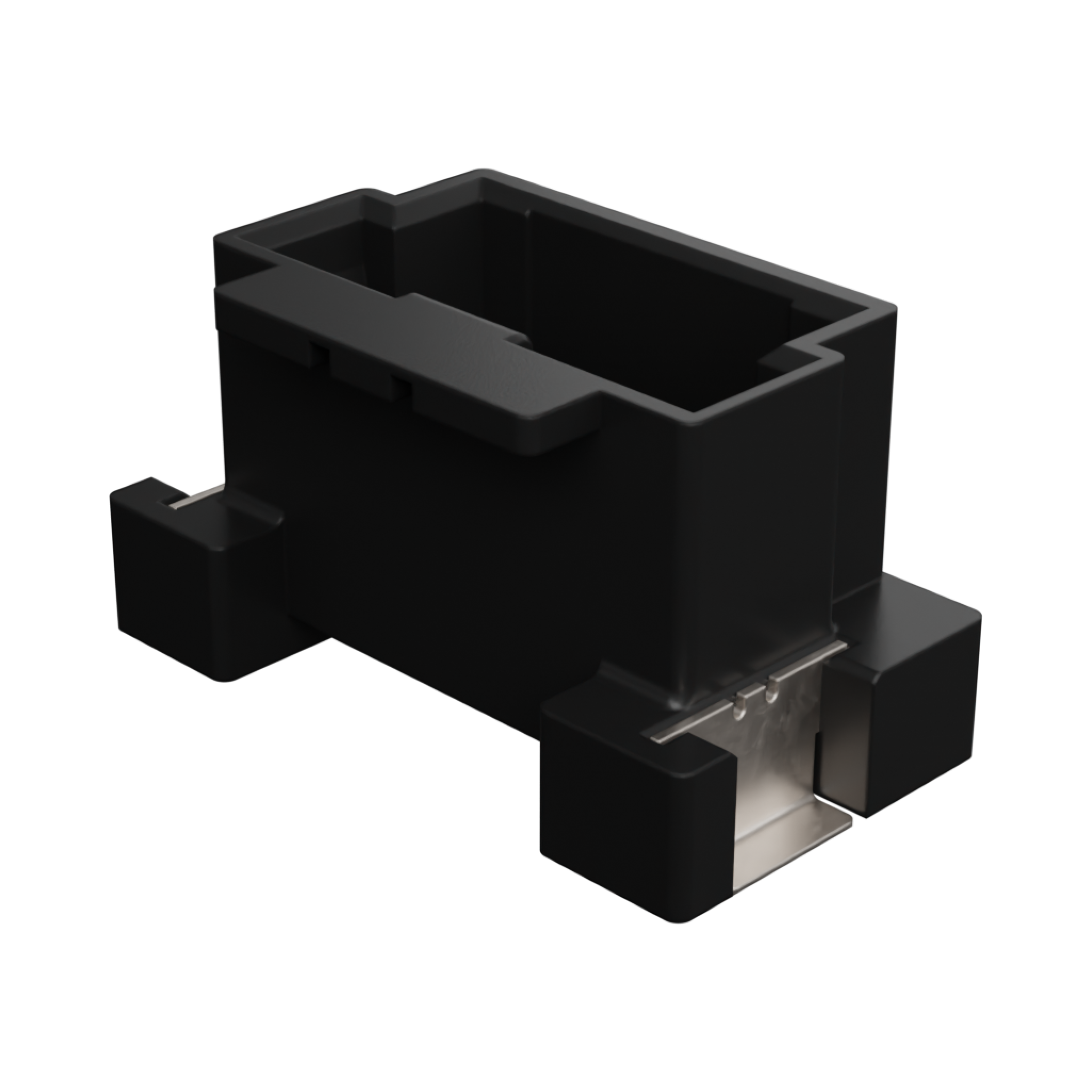

DuraClik Wire-to-Board Header, Single Row, Vertical, 4 Circuits, Tin (Sn) Plating, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 560020-0421 |
Where to Buy
Prices starting from US$0.33
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$419.70
|
76,700
in stock
|
Buy Now |
|
TME
from US$0.60
|
76,050
in stock
|
Buy Now |
|
Farnell
from US$0.74
|
69,550
in stock
|
Buy Now |
|
Newark Electronics
from US$0.73
|
535
in stock
|
Buy Now |
|
element14
from US$0.74
|
535
in stock
|
Buy Now |
|
RS
from US$1.07
|
0
in stock
|
Buy Now |
|
Sager
from US$0.33
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.41
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | DuraClik |
|---|---|
| Application | Automotive, Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 125V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Resin | Polyamide (PA) |
| Net Weight | 0.600/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C, -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) 5600200421 650 St. Tape | Conrad |
| Connector: wire-board | TME |
| CONN, HEADER, 4POS, 1ROW, 2MM | Farnell |
| Wtb Conn, Header, 4Pos, 1Row, 2Mm Rohs Compliant: Yes |Molex 560020-0421 | Newark Electronics |
| WTB CONN, HEADER, 4POS, 1ROW, 2MM | element14 |
| Molex 560020-0421 Header | RS |
| Headers & Wire Housings 2.0 W-B SMT ST 4CKT EMBOSSED TP PKG BK | Sager |
| 2.0 W-B SMT ST 4CKT EMBOS | TTI Asia |
