5600200622 DuraClik by Molex

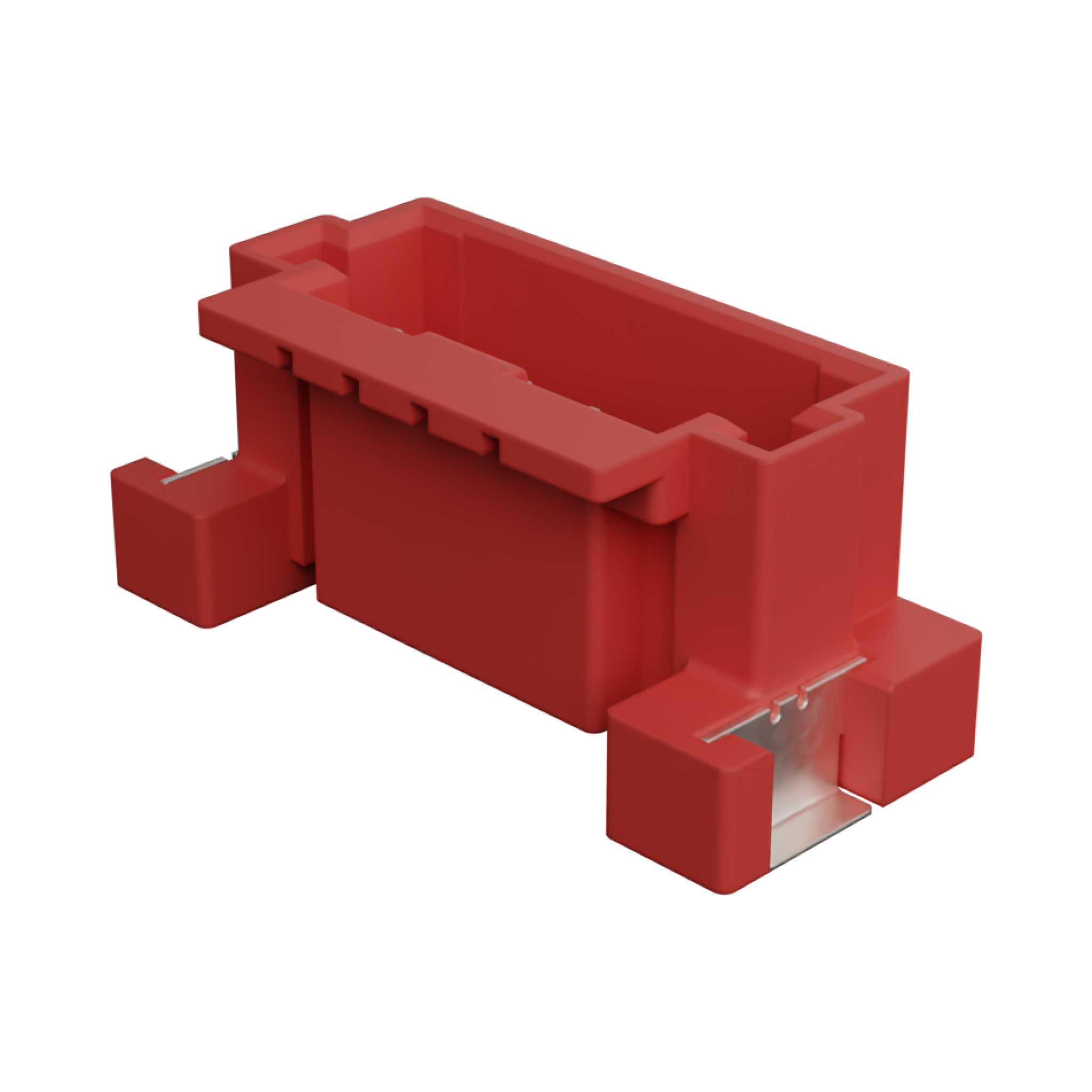

DuraClik Wire-to-Board Header, Single Row, Vertical, 6 Circuits, Tin (Sn) Plating, Red
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 560020-0622 |
Where to Buy
Prices starting from US$0.29
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.33
|
22,750
in stock
|
Buy Now |
|
Farnell
from US$0.62
|
20,800
in stock
|
Buy Now |
|
Newark Electronics
from US$0.58
|
811
in stock
|
Buy Now |
|
element14
from US$0.53
|
811
in stock
|
Buy Now |
|
Avnet America
from US$0.29
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.29
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | DuraClik |
|---|---|
| Application | Automotive, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 125V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Red |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Resin | Polyamide (PA) |
| Net Weight | 0.836/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C, -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| CONNECTORS | Farnell |
| Wtb Conn, Header, 6Pos, 1Row, 2Mm Rohs Compliant: Yes |Molex 560020-0622 | Newark Electronics |
| WTB CONN, HEADER, 6POS, 1ROW, 2MM | element14 |
| 2.0 W/B SMT ST 6CKT EMBOED TP PKD RED | Avnet America |
| 2.0 WB SMT ST 6CKT EMBOSSED TP 2.0 WB CONN. ST. | Heilind Americas |
| Conn Shrouded HDR 6 POS 2mm Solder ST SMD Emboss T/R | Avnet Abacus |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5600200622?
Additional datasheets, footprints and schematics for 5600200622 are listed on our Part Details page. You can also find images and similar parts to 5600200622 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5600200622 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5600200622 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5600200622 fall under?
The 5600200622 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5600200622 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5600200622 you can contact the distributor directly for product support, shipping queries etc.
Is the 5600200622 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5600200622 have stock available?
Authorised distributors including TME, Farnell, Newark Electronics, element14 and Avnet America have stock available or on a lead time for 5600200622.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5600200622 often in real-time on the comparison pages.
What if I can't find stock of 5600200622?
You can fill out our help required form which you can use to request a quote for 5600200622 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
