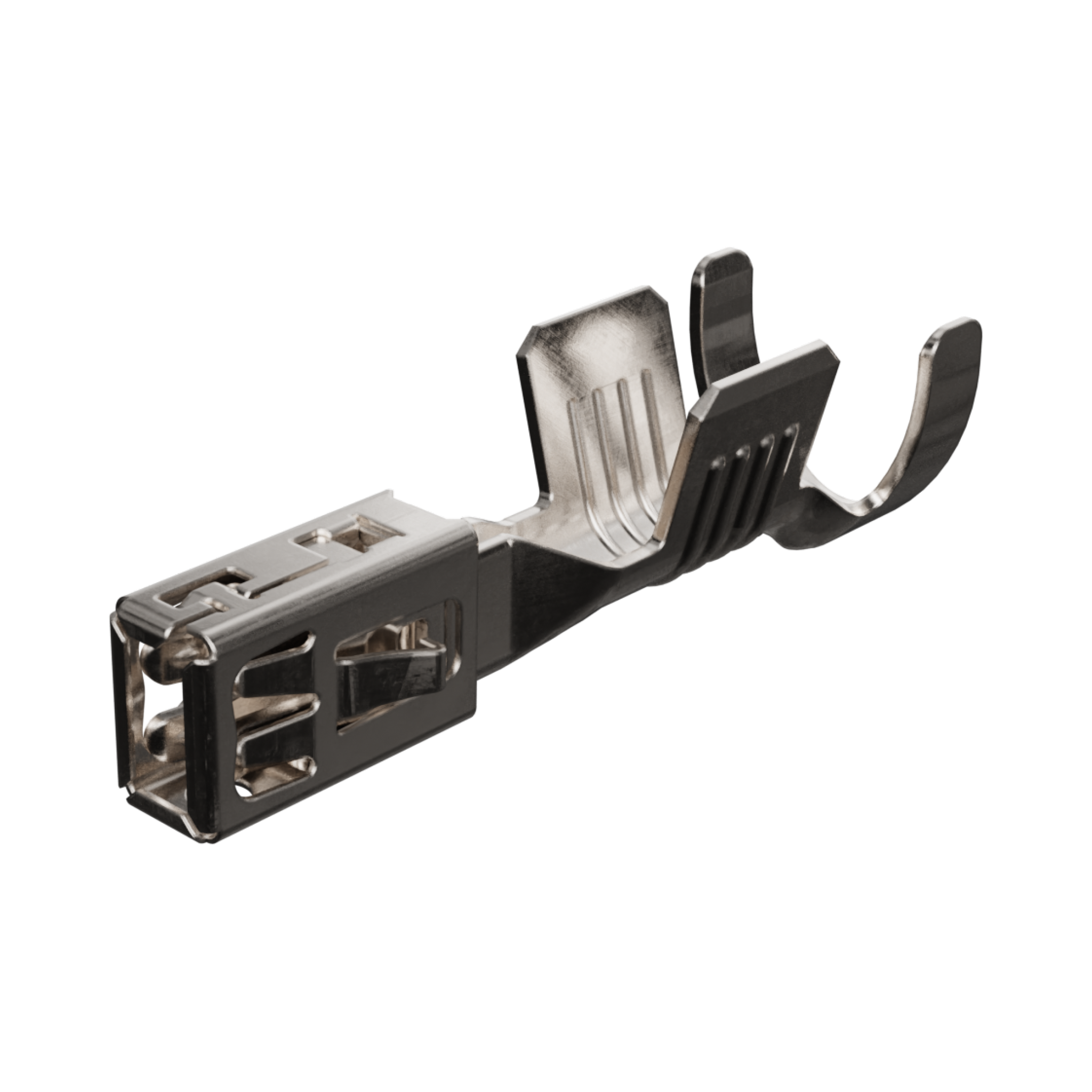

643241019 CMC,CP Terminal by Molex
2.80mm, CMC CP Female Terminal, Tin plated, for Tab Dimensions 2.80mm by 0.80mm, Wire Size > 3.00-5.00mm²
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
64324-1019,
0643241019 |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.36
|
277,500
in stock
|
Buy Now |
|
Farnell
from US$0.37
|
250,000
in stock
|
Buy Now |
|
Waytek
from US$0.20
|
12,688
in stock
|
Buy Now |
|
TTI Americas
from US$0.26
|
12,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.34
|
5,000
in stock
|
Buy Now |
|
element14
from US$0.34
|
5,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
2,297
in stock
|
Buy Now |
|
RS
from US$0.61
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.23
|
0
in stock
|
Buy Now |
|
TME
from US$0.35
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.32
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.30
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.27
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.26
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.42
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CMC,CP Terminal |
|---|---|
| Application | Automotive, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 21.0A |
| Voltage Maximum | 14V DC |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | High Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.570/g |
| Plating Min Mating | 1.016µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.40-4.00mm |
| Wire Size Awg | 10, 12 |
| Wire Size Mm | >3.00-5.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Crimpkontakt 643241019 1 St. | Conrad |
| AUTOMOTIVE CONTACT, SKT, CRIMP, 24-16AWG | Farnell |
| CMC CP FEMALE TERMINAL SN | TTI Americas |
| Automotive Contact, Socket, Crimp | Newark Electronics |
| AUTOMOTIVE CONTACT, SOCKET, CRIMP | element14 |
| Molex 64324-1019 Crimp Terminal | RS |
| Contact SKT Crimp ST Cable Mount Reel | Avnet America |
| Contact | TME |
| CP TERMINAL 2.8 SN - 3 TO 5SQMM | RS Americas |
| CP TERMINAL 2.8 SN | TTI Europe |
| CP TERMINAL 2.8 SN - 3 TO 5SQ M | Heilind Americas |
