700210081 SL by Molex

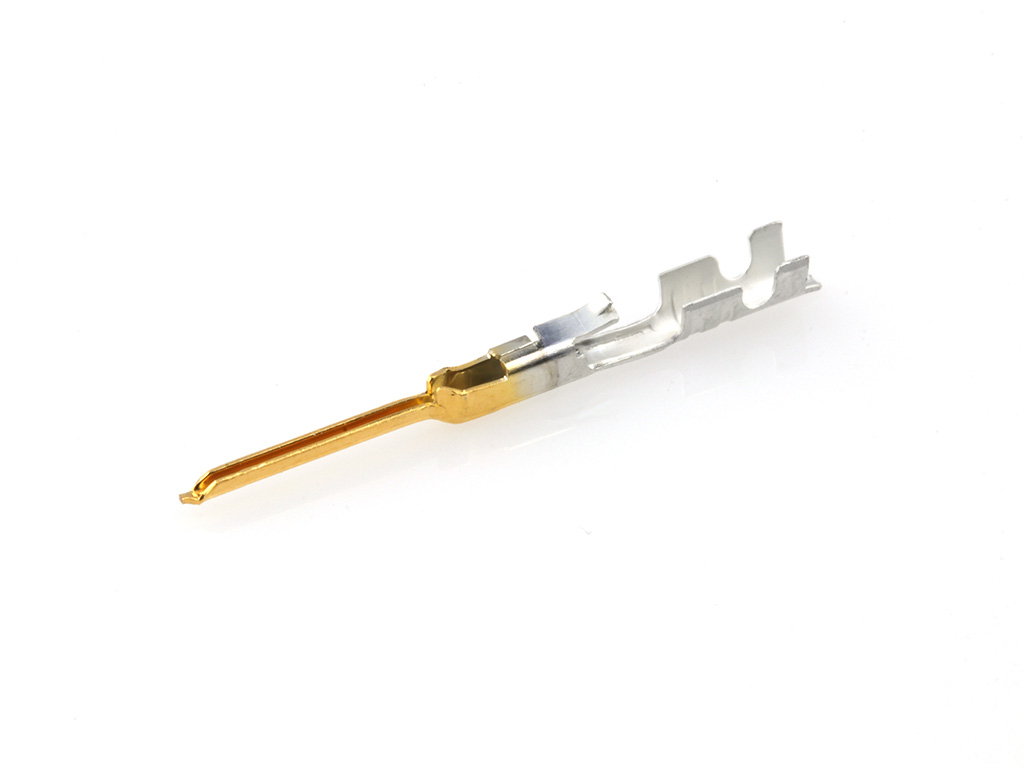

SL Crimp Terminal, Series 70021, Male, 8.43mm Mating Length, 0.38µm Gold (Au) Plated, 24-22 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
70021-0081,
0700210081 |
Where to Buy
Prices starting from US$0.12
Specifications
| Product Name | SL |
|---|---|
| Application | Signal, Wire-to-Wire |
Physical |
|
|---|---|
| Gender | Male |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 0.092/g |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.905µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.63mm max. |
| Wire Size Awg | 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Sl Male Crp Term 22-24Awg 15Au Reel Rohs Compliant: Yes |Molex 70021-0081 | Newark Electronics |
| SL MALE CRP TERM 22-24AWG 15AU REEL 09AH3350 | element14 |
| SL TERM CRP M 15 SAU 22-24 RE L #LF | Heilind Americas |
